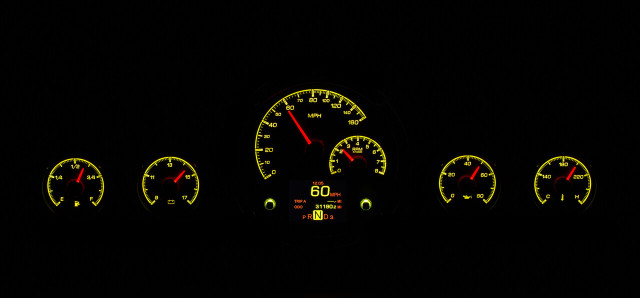

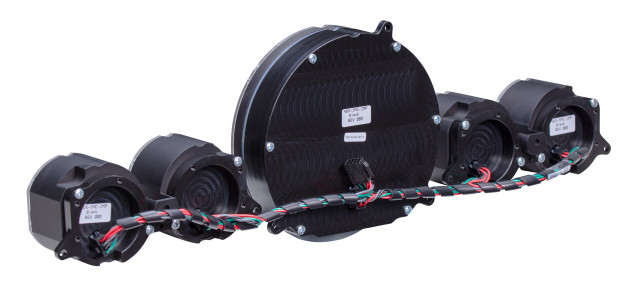

The Dakota Digital HDX-59C-IMP-K is a direct-fit HDX instrument system designed for 1959-60 Chevy Impala models, featuring a black alloy gauge face. Engineered to install directly into the stock dash housing, this system replaces the original cast pods with six analog sweep gauges plus a large, full-color TFT message center, bringing modern instrumentation to the classic dash while retaining a factory appearance.
The HDX system allows independent illumination color selection for gauge readings, needles, and the message center, with calibration and settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
This system uses an OEM or reproduction style bezel; the bezel is not included and is shown for visual/presentation purposes only.
Key Features
- Black alloy gauge face styling
- Six analog sweep gauges plus a full-color TFT digital message center
- Over 30 user-selectable colors for independently setting needle, sweep, and digital display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting for sharp day and night visibility with separate daytime and nighttime themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Onboard LED-lit capacitive touch pushbuttons for setup and driving mode functions
- Bluetooth app compatibility for Android and Apple devices for setup and real-time gauge readouts
- Central control box simplifies wiring using vehicle-harness sourced signals
Specifications
- Part Number: HDX-59C-IMP-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
