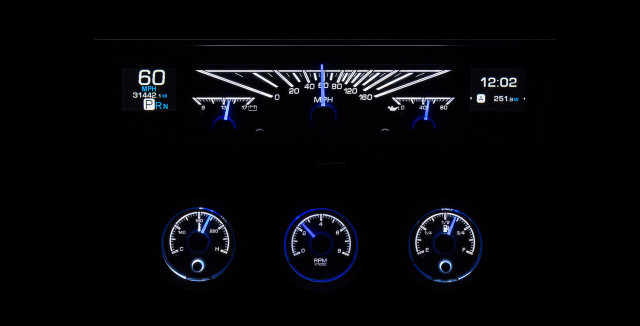

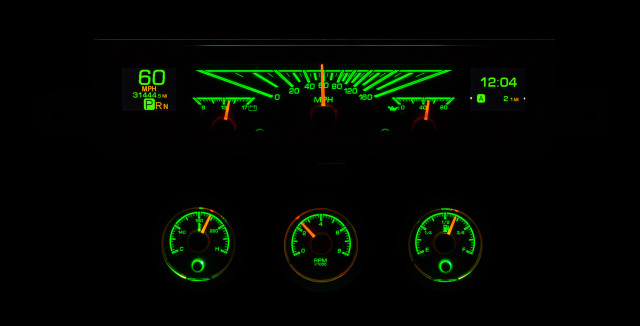

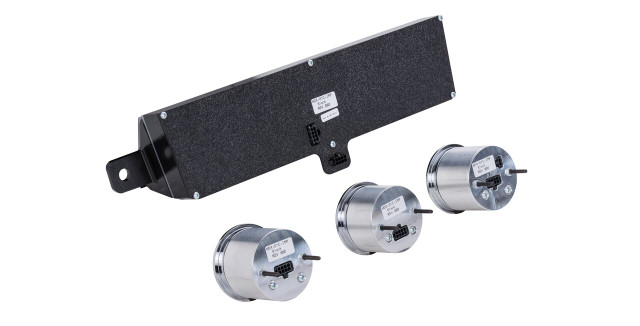

The Dakota Digital HDX-61C-IMP-K is a direct-fit HDX instrument system designed for 1961-62 Chevy Impala applications, featuring black alloy gauge-face styling. This system eliminates the need to modify the dashboard for a set of round gauges, including new chrome housings and bezels for the round gauges while reusing the factory rectangular speedometer trim piece.
Twin TFT message centers allow the driver to view pertinent vehicle information at any time while retaining the classic look of the era. Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons. The system uses an OEM or reproduction style bezel; bezel is not included.
Key Features
- Black alloy gauge-face styling
- Twin TFT digital message centers
- Independently selectable illumination colors for needles, gauge sweeps, and message centers
- Capacitive-touch button calibration plus Bluetooth app control for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each gauge
- Central control box simplifies installation using vehicle-harness sourced signals and supplied solid state sending units
- 12 factory preset color themes plus fully custom color zone selection
- Full LED/RGB backlighting for daytime and nighttime viewing
Specifications
- Part Number: HDX-61C-IMP-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional DIM-1 accessory available for on-the-fly rotary dimmer control
