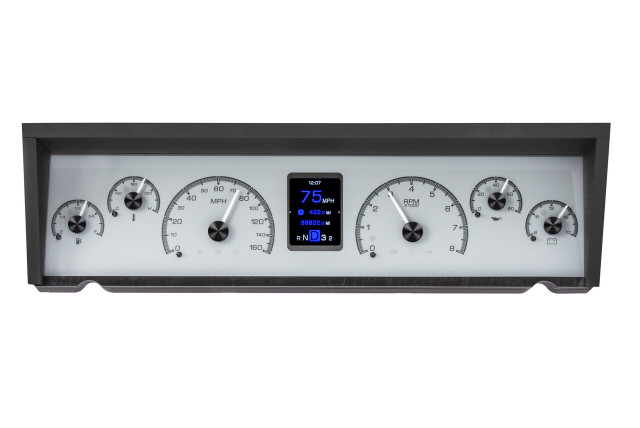

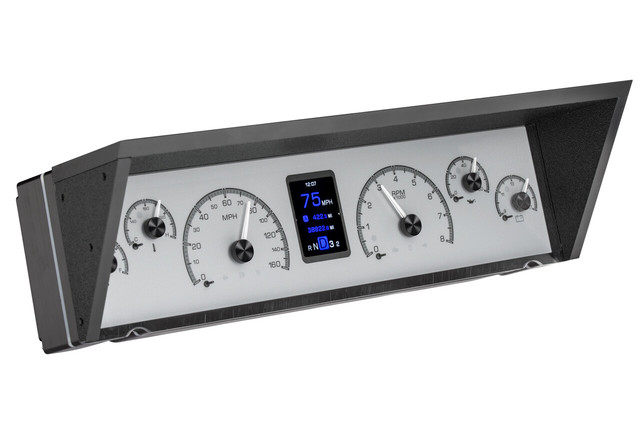

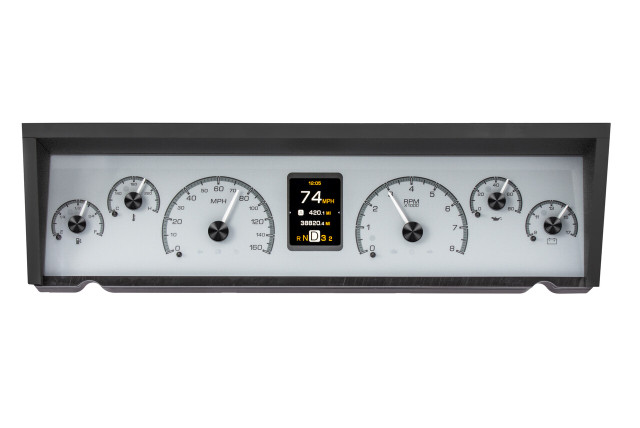

The Dakota Digital HDX-77C-CAP-S is a bolt-in HDX instrument system for 1977-90 Chevy Caprice/Impala, featuring a silver alloy gauge-face styling. This system delivers color-changing backlighting, full-color digital displays, and mobile-app compatibility without requiring any cutting for installation, though some wiring is necessary to complete the conversion. Installation and setup are straightforward whether the vehicle retains its stock drivetrain or has undergone an LS-conversion.
Independent illumination colors can be selected for gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Silver alloy gauge-face styling with black nickel plated spun-aluminum needle hubs
- Over 30 user-selectable color options for independent needle, sweep, and digital TFT display colors
- 12 factory preset color themes, or fully customizable color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Onboard capacitive-touch pushbutton controls with LED-lit feedback through the gauge face
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time gauge readouts
- Central control box simplifies installation with vehicle-harness sourced signals and supplied solid state sending units
- Daytime and nighttime brightness control toggled by the headlight switch
Specifications
- Part Number: HDX-77C-CAP-S
- Fitment: 1977-90 Chevy Caprice/Impala B-bodies
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil pressure: 1/8" NPT solid state sensor with 10 ft harness

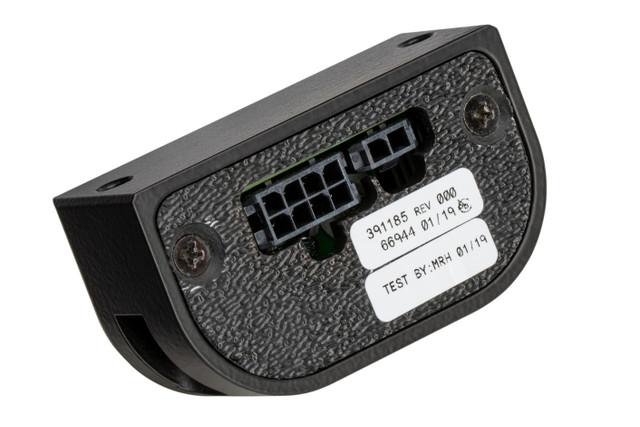

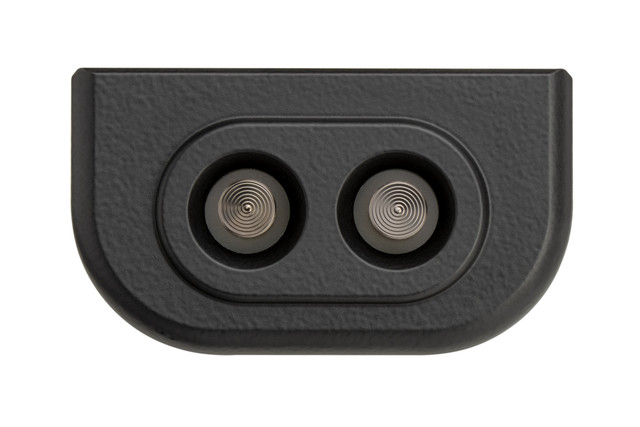

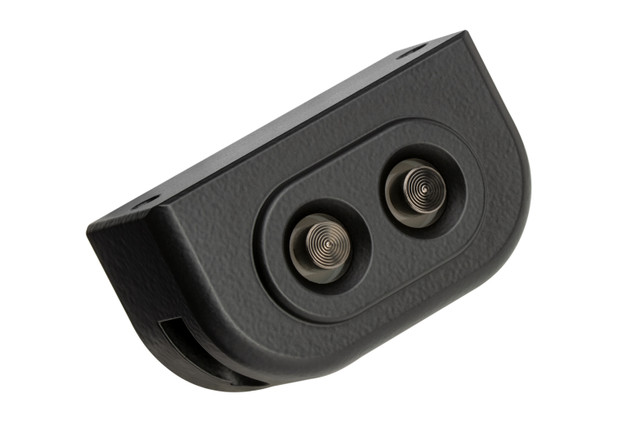

- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance; part # 130011 sold separately for relocation if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
