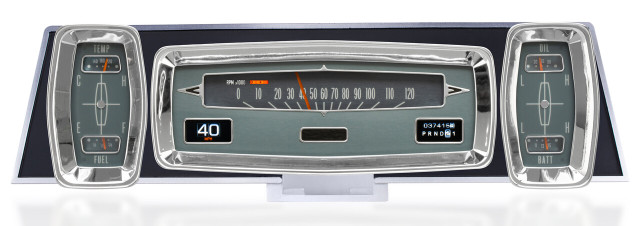

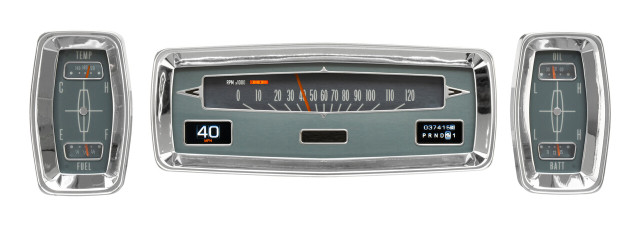

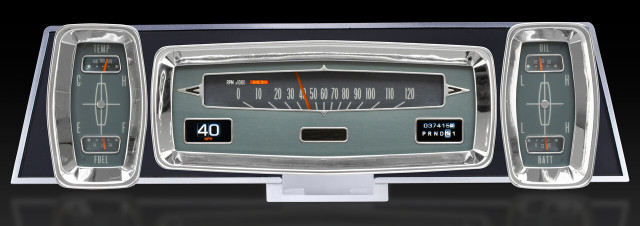

The Dakota Digital RTX-61L-X Instrument System brings a rich, OEM-inspired look to the 1961-63 Lincoln Continental, a car once dubbed "The Best Looking American Built Car Today." New chromed aluminum bezels are included and provide a perfect fit for the stock three-piece dash assembly, preserving the car's original character while delivering modern capability.
The RTX series is Dakota Digital's latest instrument platform, designed to retain the stock appearance without sacrificing late-model features. Careful attention was paid to OEM design elements in layout, face styling, and indicators, so the gauges appear factory-original until the LED backlighting is switched on in a custom color scheme. CNC-machined housings are filled with in-house designed electronics, and a high-definition TFT message center can be configured to display a wide range of information. A central control box simplifies installation and setup.
This system requires permanent modification to the inside of the stock instrument cluster to provide clearance for the new instrumentation. Stock housings and the mounting plate are not included, and the installation mounting manual should be reviewed for specific details.
Key Features
- New chromed aluminum bezels for a perfect fit in the stock 3-piece dash assembly
- OEM-inspired layout, face styling, and indicators
- CNC-machined housings with in-house designed electronics
- High-definition TFT message center, fully configurable
- Central control box for simplified installation and setup
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Daytime and nighttime brightness control through the RTX setup menu, tied to the headlight switch
- Pushbutton rocker switch control for driving mode and setup menu navigation
- Free mobile app (Android and Apple) for complete system configuration and real-time gauge readouts
Specifications
- Part Number: RTX-61L-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocating the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- New chromed aluminum instrument bezels
- Analog gauges, digital bar graph tachometer, and TFT message center
- Central control box
- Pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Stock housings and mounting plate are not included
- Permanent modification to the inside of the stock instrument cluster is required for clearance; review the installation mounting manual before beginning
- Gear position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- GPS-50-2 can be used to eliminate the need to calibrate the speedometer
