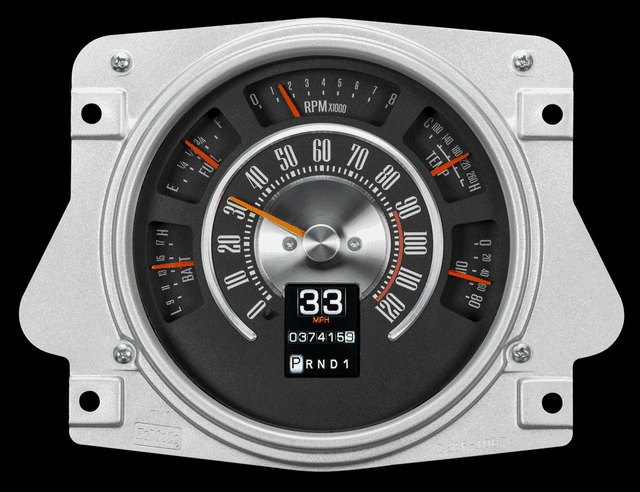

The Dakota Digital RTX-66F-BRO-X Instrument System delivers a factory look-alike gauge cluster designed to fit into the stock steel instrument bezel of 1966-77 Ford Bronco vehicles, and also fits 1961-66 Ford F100 pickups (except Custom Cab) using the stock bezel. This system retains a vintage appearance while adding a tachometer and a host of high-tech features not found in the original equipment.
Spun-aluminum accents on the instrument face and orange needles bring an authentic vintage look, while the large, full-color TFT message center can be fully customized to display the information you want. Every effort has been made to incorporate OEM design elements regarding layout, face styling, and indicators, so a casual glance may dismiss this system as original equipment—until the LED backlighting comes on in your chosen color scheme.

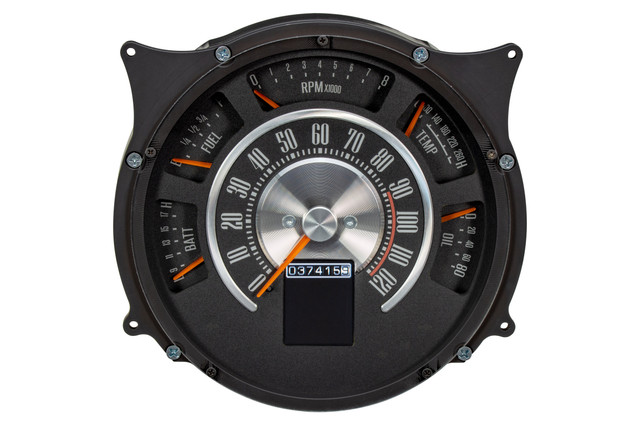

CNC machined housings are filled with electronics designed and built in-house by Dakota Digital. The RTX series utilizes a central control box to simplify installation and setup, and the high-definition TFT message center can be configured to display nearly any piece of information needed for your build.
Key Features
- Factory look-alike design fits into the stock steel instrument bezel
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter gauges
- Spun-aluminum face accents with orange needles for a vintage appearance
- Full-color TFT message center with user-customizable displays

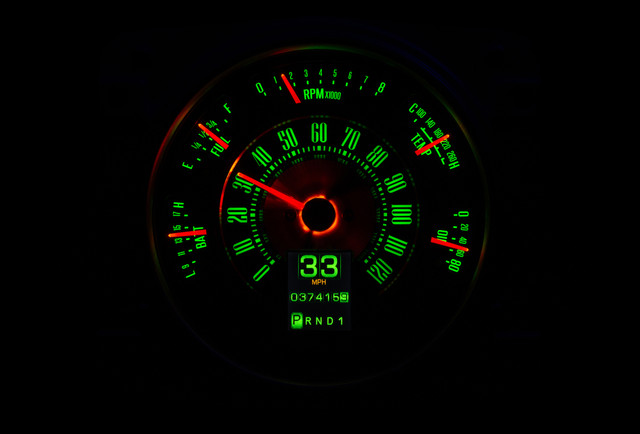

- Over 30 user-selectable color options for needle color, sweep color, and digital TFT display color
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two programmable auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Pushbutton rocker switch control for setup and operation
- Configurable through a free mobile app for Android and Apple devices
- Central control box design for simplified installation and wiring
Specifications
- Part Number: RTX-66F-BRO-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Fits 1966-77 Ford Bronco and 1961-66 Ford F100 pickup (except Custom Cab) with stock bezel
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness
- Bushing kit: 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

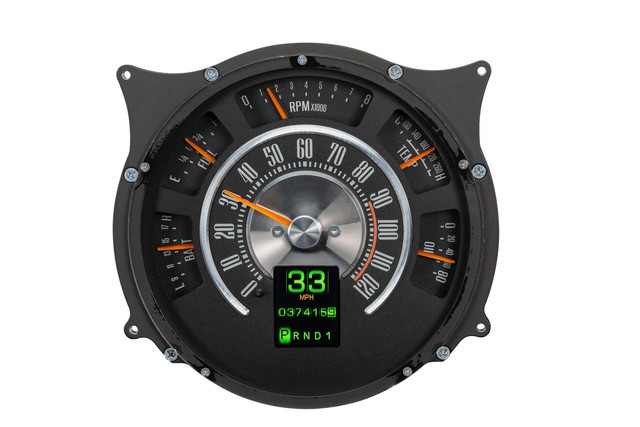

- Two-sided pushbutton rocker switch for setup and operation
Notes
- Instrument bezel is not included; the system is designed to use the OEM bezel
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- Speedometer sensor requires approximately 5" of clearance between the cable drive output and any obstruction; Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed
- DIM-1 accessory (sold separately) is available for on-the-fly rotary dimmer control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
