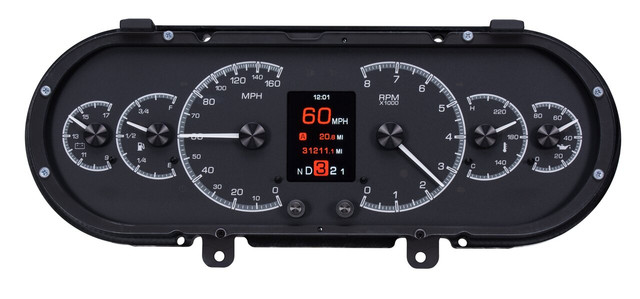

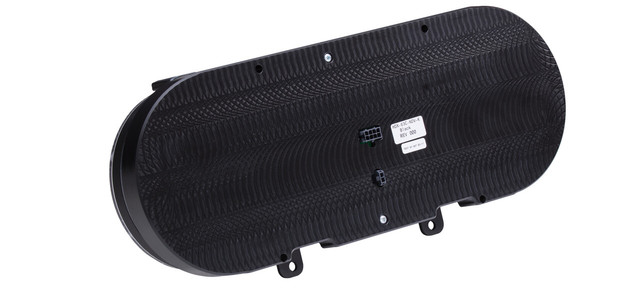

The Dakota Digital HDX-63C-NOV-K is a complete HDX instrument system engineered specifically for the 1963-65 Chevy Nova (Chevy II), featuring a black alloy gauge face. Designed to fit within the small factory instrument housing, this system packs six analog gauge readings into a compact layout while adding a full-color TFT display for additional vehicle information. It uses your stock or reproduction bezel, and can also be adapted to 1962 models with the addition of a 1963-65 bezel.
Owners can select independent illumination colors for gauge readings, needles, and message centers, allowing the system to be tailored to match any interior theme. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices, giving users flexible control over setup and real-time diagnostics.
Each HDX system simplifies installation with a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals, reducing wiring complexity.
Key Features
- Six analog gauge readings plus a full-color TFT message center
- Black alloy gauge-face styling
- Independently selectable illumination colors for gauge readings, needles, and message centers
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbutton controls with LED lighting
- Bluetooth app compatibility for Android and Apple devices for configuration and real-time readouts
- Central control box with vehicle-harness sourced signals for simplified installation
- Includes solid-state sending units for clean connections
Specifications
- Part Number: HDX-63C-NOV-K
- Vehicle Application: 1963-65 Chevy Nova (Chevy II); compatible with 1962 models using a 1963-65 bezel
- Gauge Face Color: Black Alloy
- Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure Sensor: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Control Box Dimensions: 5.5" x 3.5" x 1"
Kit Includes
- HDX instrument cluster with black alloy gauge face
- Central control box
- Solid-state water temperature and oil pressure sending units with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Speedometer calibration is not required if GPS-50-2 is used
