Description

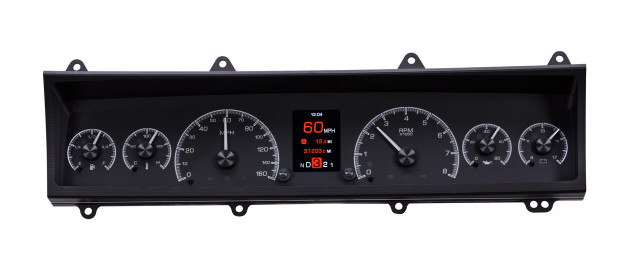

The Dakota Digital HDX-69C-NOV-K is a complete HDX Series instrument system engineered for the 1969-76 Chevy Nova, featuring a Black Face design. This system combines traditional analog gauge movements with a vivid digital message center, delivering accurate performance data along with full customization of gauge lighting and display color.
Each HDX system includes a speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter gauges, along with a built-in digital message center capable of displaying odometer, trip meters, clock, and performance timing functions. Onboard capacitive touch pushbuttons and Bluetooth app connectivity make calibration and setup quick and convenient.
With over 30 user-selectable color options and 12 factory preset themes, the HDX system allows for a fully personalized gauge appearance, from a classic OE look to a bold custom design, all set against the Black Face background.
Key Features
- Analog speedometer (0-160 MPH), tachometer (0-8,000 RPM), oil pressure (0-80 psi), water temperature (100-260°F), fuel level, and voltmeter (9-17 VDC) gauges
- Digital message center with odometer, dual trip meters, 12-hour clock, and estimated range display
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more, with optional gear position indicator (GSS-3000 sensor required)
- Full LED/RGB backlighting with over 30 user-selectable colors for needle, sweep, and digital display
- 12 factory preset color themes or fully custom color zone selection
- Independent daytime and nighttime brightness control through the HDX setup menu
- LED-lit onboard capacitive touch pushbuttons for setup and operation
- Bluetooth app compatibility for Android and Apple devices, enabling wireless configuration and real-time gauge readouts
- Black Face gauge design
Specifications
- Part Number: HDX-69C-NOV-K
- Vehicle Application: 1969-76 Chevy Nova
- Face Color: Black
- Background: Black Alloy
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Voltmeter Range: 9-17 VDC

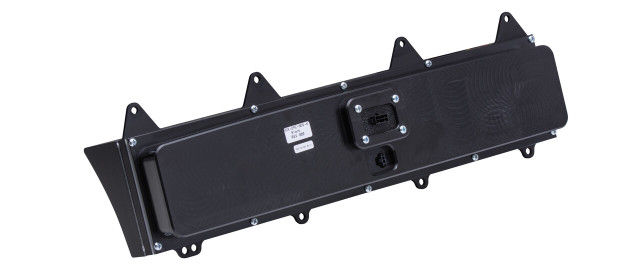

- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor, 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor, 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator with 10 ft harness, replacing GM style speedometer cables
- Assorted bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Cable driven speed sensor requires approximately 5" of clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows for relocation of the pulse generator if additional clearance is needed
- Optional GSS-3000 sensor required for gear position indicator functionality
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
