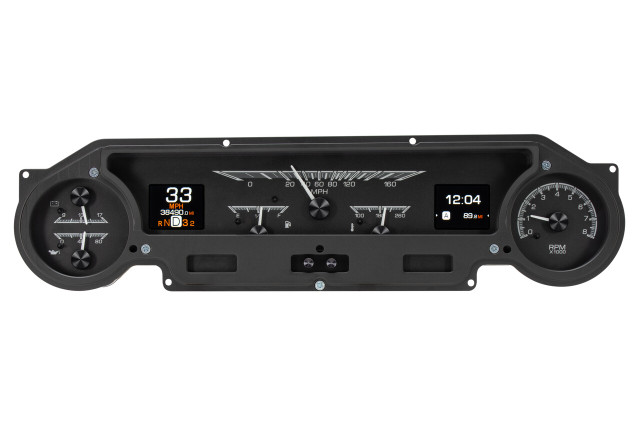

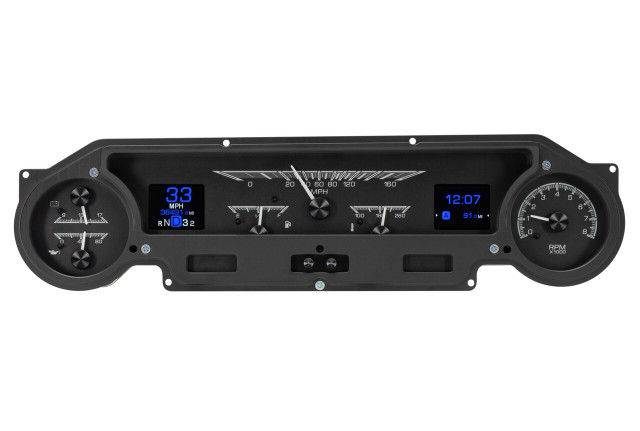

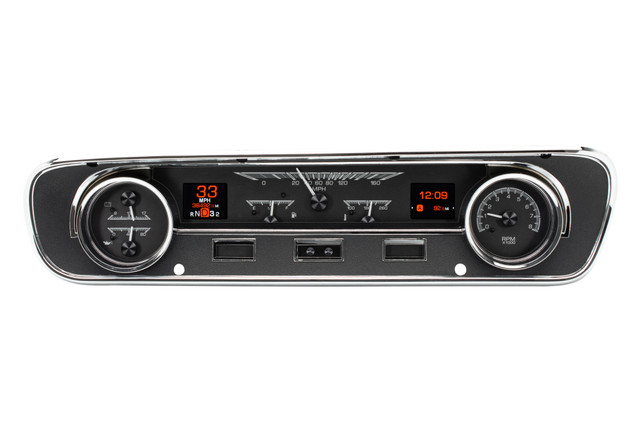

The Dakota Digital HDX-64F-FAL-K is a direct bolt-in instrument system designed for 1964-65 Ford Falcon, Ranchero, and early (non-Pony) Mustang applications. This system installs into a stock or reproduction 1964-65 front bezel, delivering six analog gauge readings along with twin TFT message centers without requiring any cutting of the dash.
This HDX system features a black alloy gauge-face background, with fully customizable illumination colors for the gauge needles, sweeps, and digital message centers. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. The included central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
Key Features
- Six analog gauges including speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Twin TFT digital message centers displaying odometer, dual trip meters, clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning LED built into each analog gauge sweep
- Over 30 user-selectable color options for needles, sweeps, and digital displays, with 12 factory preset color themes
- Full LED/RGB backlighting with independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Onboard capacitive-touch pushbutton controls with Bluetooth app support for setup and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs to match the control buttons
Specifications
- Part Number: HDX-64F-FAL-K
- Gauge Face Color: Black alloy background
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing Ford and/or GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; part # 130011 sold separately for relocation if additional clearance is needed)
- Bushings included: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Front bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
