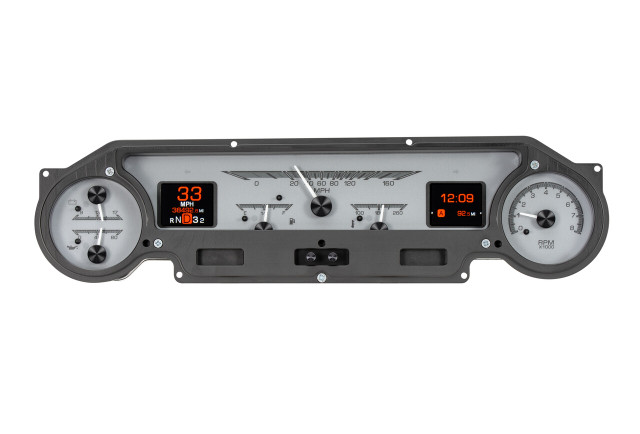

The Dakota Digital HDX-64F-FAL-S is a direct bolt-in instrument system designed for the 1964-65 Ford Falcon, Ranchero, and early (non-Pony) Mustang. Built with a silver alloy gauge-face styling, this HDX system delivers six analog gauge readings along with twin TFT message centers, all installed using a stock or reproduction 1964-65 front bezel without the need to cut into the original dash.

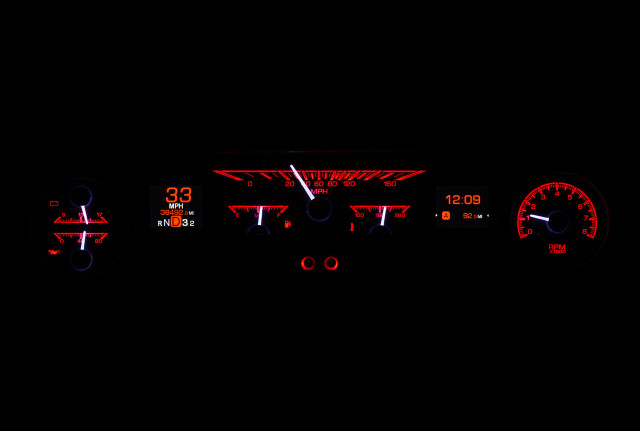

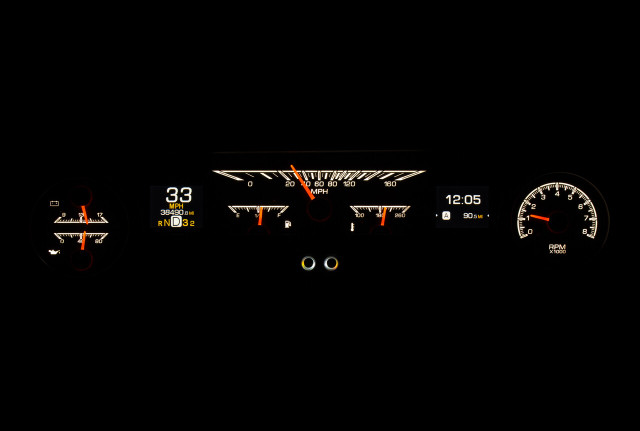

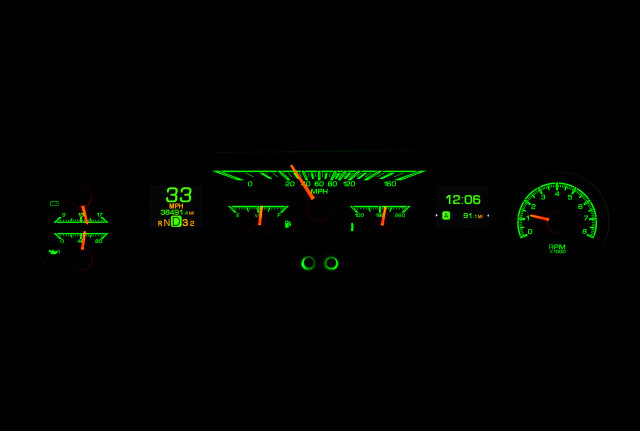

The system allows independent illumination color selection for gauge readings, needles, and message centers, giving owners full control over the look of their instrument panel. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to complement the button finish.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Six analog gauges: Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- Dual TFT digital message centers with Odometer, Dual (A/B) Trip Meter, Clock, and Estimated Range/Miles to Empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable auxiliary indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options for needles, sweep, and digital TFT displays, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, toggled automatically by the headlight switch
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Onboard capacitive touch pushbutton controls with buzzer feedback, plus full Bluetooth app configuration for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs matching the button finish
Specifications
- Part Number: HDX-64F-FAL-S
- Gauge Face Finish: Silver Alloy
- Speedometer Range: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (optional Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Front bezel is not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed to suit specific applications
- Gear Position indicator requires the optional GSS-3000 sensor
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Speedometer calibration is unnecessary if the GPS-50-2 accessory is used
