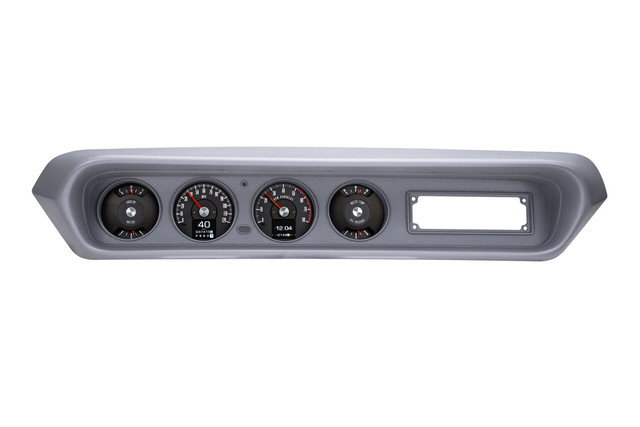

The Dakota Digital RTX-64P-GTO-X is a direct-fit instrument system engineered for the 1964-67 Pontiac GTO, LeMans, and Tempest. Thanks to the shared factory cluster design across these models, this single system delivers an accurate, OEM-style fit while bringing modern electronics to a classic dash. The machined aluminum housing preserves the original styling cues, so even a straight restoration benefits from the most advanced instrumentation available.
As part of Dakota Digital's RTX series, this system blends true-to-original gauge layout, face styling, and indicator placement with twin high-definition TFT message centers and full LED backlighting. At a glance, the gauges appear factory-correct, but switching them on reveals fully customizable color themes and digital readouts that bring late-model functionality to a vintage dash.

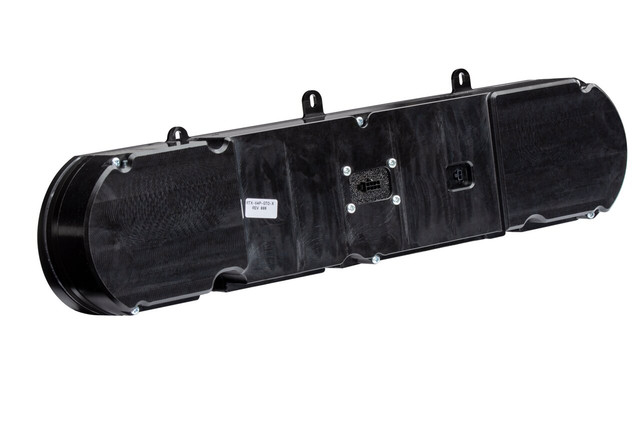

CNC-machined housings are filled with in-house designed electronics, and the system utilizes a central control box to simplify installation and setup. Note that the bezel is not included; the system is designed to use an OEM or reproduction style bezel.
Key Features
- Direct-fit design for 1964-67 Pontiac GTO, Tempest, and LeMans
- Machined aluminum housing for an accurate, OEM-style appearance
- Twin high-definition TFT digital message centers
- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes plus full custom color zone selection
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, and more
- Red LED sweep indicator on each analog gauge (except speedometer) for quick warning notice
- Two auxiliary input indicators with user-programmable labels
- Pushbutton rocker switch control plus free mobile app configuration for Android and Apple devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
Specifications
- Part Number: RTX-64P-GTO-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replaces GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction; part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel is not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- On-the-fly rotary brightness control available with optional DIM-1 accessory
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
