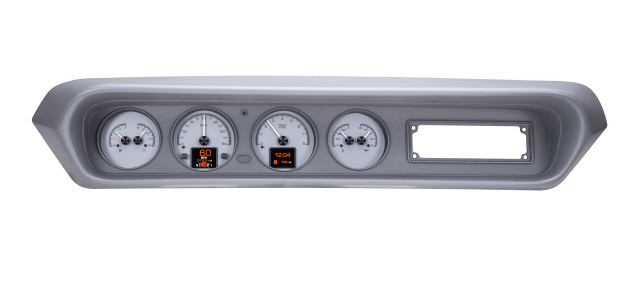

The Dakota Digital HDX-64P-GTO-S HDX Instrument System brings a dramatic, fully digital/analog hybrid gauge package to 1964-67 Pontiac GTO, Tempest, and LeMans models. The fully machined instrument housing attaches directly to the stock gauge bezel found in these A-body Pontiacs, making installation straightforward. Two TFT message centers and six analog gauge sweeps fill the quartet of openings, allowing the driver to view nearly any parameter desired, all finished with silver alloy gauge-face styling.
This HDX system allows the user to independently select illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel-plated spun aluminum to match the buttons, and all HDX systems feature dead-faced indicators along with a red, settable warning light for each gauge.
A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals. The system uses an OEM or reproduction-style bezel; bezel/trim/facia is not included.
Key Features
- Silver alloy gauge-face styling with over 30 user-selectable color options for needles, sweeps, and digital TFT displays

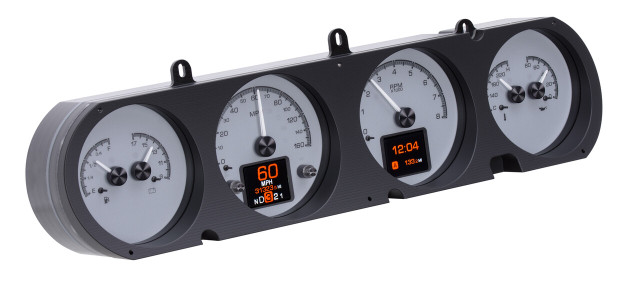

- Two TFT message centers and six analog gauge sweeps in a fully machined housing that mounts to the stock gauge bezel
- Independent illumination color control for gauges, needles, and message centers
- Built-in capacitive-touch pushbutton controls plus Bluetooth app compatibility for Apple and Android devices
- Black nickel-plated spun-aluminum needle hubs matching the control buttons
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light on each analog gauge for quick notice of a warning condition (except speedometer)

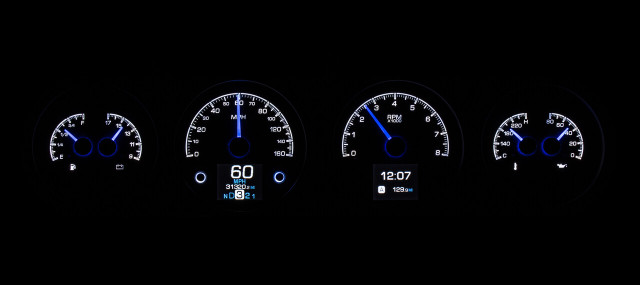

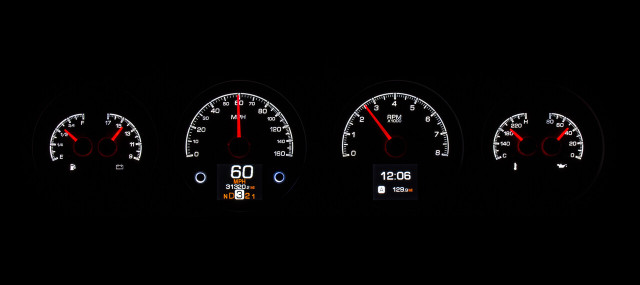

- 12 factory preset color themes or fully custom color zone selection
- Daytime and nighttime brightness control through the HDX setup menu, toggled by the headlight switch
- Central control box simplifies wiring using vehicle-harness sourced signals
Specifications
- Part Number: HDX-64P-GTO-S
- Fitment: 1964-67 Pontiac GTO, Tempest, and LeMans
- Gauge Face Color: Silver
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator replacing GM-style speedometer cables, with 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Notes
- Bezel/trim/facia is not included; system uses an OEM or reproduction-style bezel
- Gear position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
