Description
Description

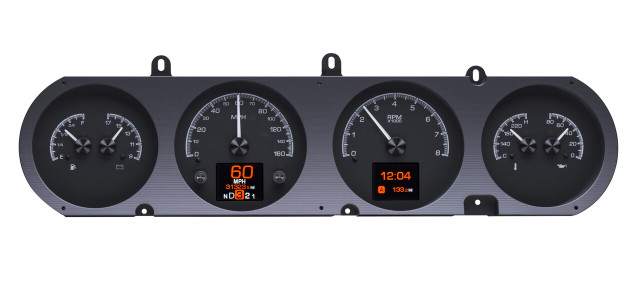

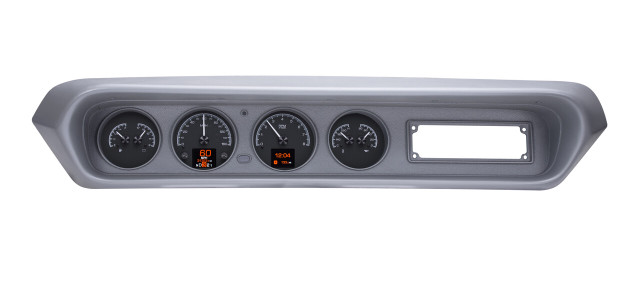

The Dakota Digital HDX-64P-GTO-K is a complete HDX instrument system engineered specifically for 1964-67 Pontiac GTO, Tempest, and LeMans models (including the '63 Tempest). This system features a black alloy gauge face and a fully machined instrument housing that attaches directly to the stock gauge bezel, making installation straightforward.
The system combines two TFT message centers with six analog gauge sweeps across four openings, giving the driver a wide range of selectable parameters to view. Illumination colors for the gauge readings, needles, and message centers are all independently selectable, with calibration and personalization handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied solid-state sending units. The system uses an OEM or reproduction style bezel; bezel, trim, and fascia are not included.
Key Features
- Black alloy gauge face with two TFT message centers and six analog gauge sweeps
- Fully machined instrument housing attaches directly to the stock 1964-67 Pontiac A-body gauge bezel

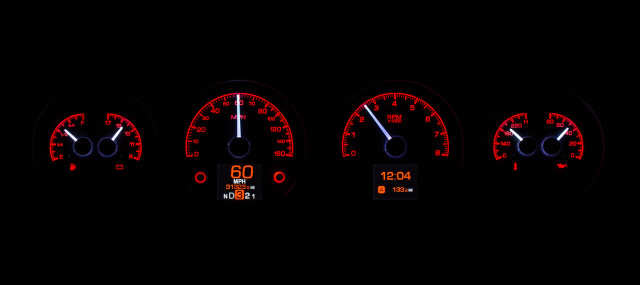

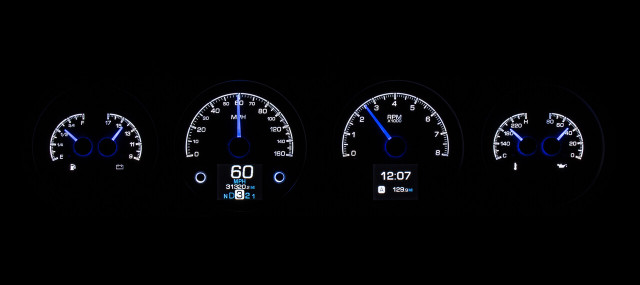

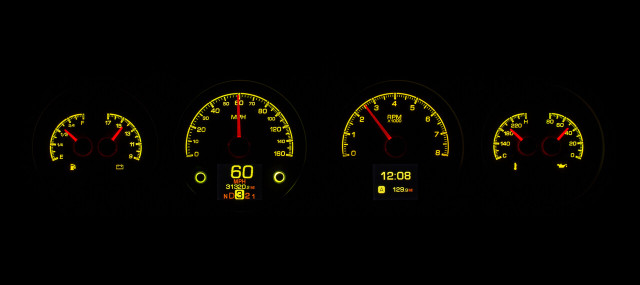

- Over 30 user-selectable color options for needles, sweeps, and digital displays
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Built-in capacitive-touch pushbutton controls plus Bluetooth app control for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Central control box simplifies installation using vehicle-harness sourced signals and supplied solid-state sending units
Specifications
- Part Number: HDX-64P-GTO-K
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; part 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel, trim, and fascia are not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 is a common accessory for on-the-fly rotary dimming control (sold separately)
