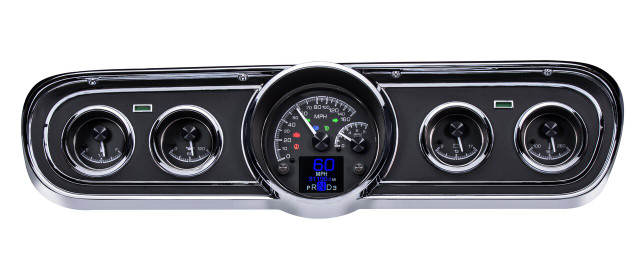

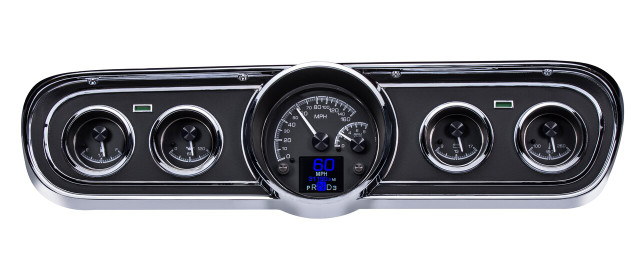

The Dakota Digital HDX-65F-MUS-K is a direct-fit HDX instrument system engineered for the 1965-66 Ford Mustang, featuring a black alloy gauge face. This system combines six analog gauge sweeps with a full-color TFT message center, delivering a modern, highly customizable instrument cluster that connects cleanly to your drivetrain, whether it's an original 289 or a swapped 5.0L Coyote.
Each HDX system allows independent illumination color selection for gauge readings, needles, and the message center display. Calibration and personal settings are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel-plated spun aluminum to match the control buttons.
Installation is simplified with a central control box that sources signals from the vehicle harness and uses supplied solid-state sending units that connect cleanly to their respective terminals. The system is designed to work with an OEM or reproduction style bezel.
Key Features
- Six analog gauge sweeps plus a full-color TFT message center
- Black alloy gauge face styling
- Over 30 user-selectable colors for independently changing needle, sweep, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with unique daytime and nighttime themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- LED-lit onboard capacitive touch pushbuttons for quick menu and driving mode access
- Bluetooth app compatibility for complete system configuration and real-time gauge readouts
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-65F-MUS-K
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-120 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
- GPS-50-2 may be used to eliminate the need for speedometer calibration
