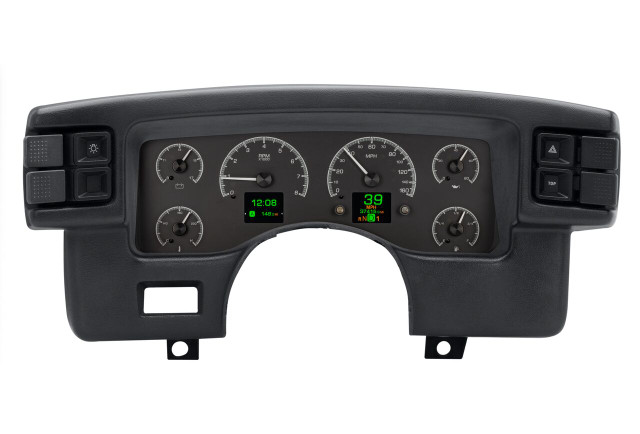

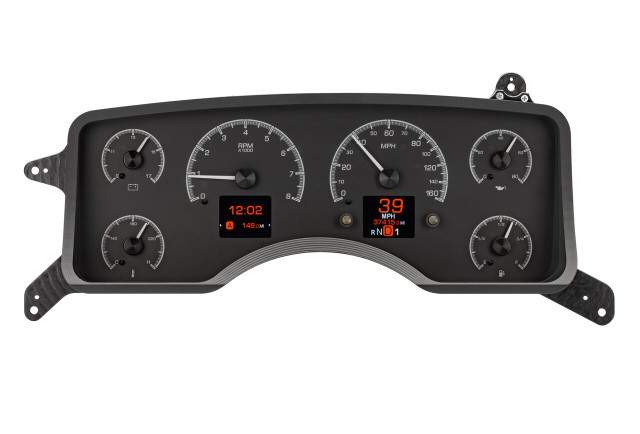

The Dakota Digital HDX-90F-MUS-K is a complete HDX instrument system designed for 1990-93 Ford Mustang models, featuring a black alloy gauge-face styling that installs directly into the stock cluster and housing. This advanced system combines six analog instruments with a large, full-color TFT message center that can be programmed to the user's preference, delivering a modern, high-tech appearance while retaining a factory fit.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with over 30 user-selectable color options. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons, and the system features dead-faced indicators along with a red, settable warning light for each gauge.
Installation is simplified through a central control box that sources signals from the vehicle harness, paired with included solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog gauges with a large full-color TFT digital message center
- Over 30 user-selectable LED backlighting color options for needles, sweeps, and digital displays
- 12 factory preset color themes, or fully customizable color zones
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge sweep (except speedometer)
- Onboard capacitive-touch pushbutton controls with button-press feedback via the TFT message center or included buzzer
- Full system configuration and real-time gauge readouts available through the free Bluetooth app for Apple and Android devices
- Day and night brightness control, toggled by the headlight switch
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-90F-MUS-K
- Gauge Face Finish: Black Alloy
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile elapsed time and trap speed
- High speed recall and high RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/on & engaged when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing Ford or GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; relocation part #130011 sold separately if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Speedometer and fuel level calibration is completed via onboard pushbuttons/Bluetooth app and a short test drive, unless GPS-50-2 is used to eliminate speedometer calibration
- DIM-1 accessory available for on-the-fly rotary brightness control
