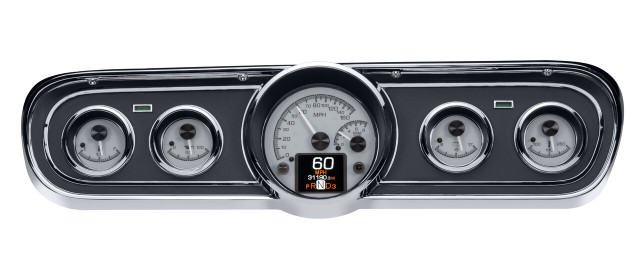

The Dakota Digital HDX-65F-MUS-S is a complete HDX instrument system designed as a direct fit for 1965-66 Ford Mustangs using original or reproduction gauge bezels. This system features silver alloy gauge-face styling and combines six analog gauge sweeps with a full color TFT message center, delivering modern technology with classic gauge presentation. It connects cleanly to a variety of drivetrains, from a 289 to a 5.0L Coyote.
Each gauge reading and needle can be independently illuminated in the user's choice of color, as well as the message center display, allowing for a fully customized instrument panel appearance. Needle hubs are black nickel plated spun-aluminum to match the system's capacitive-touch control buttons. Calibration and personal settings are managed through the built-in buttons or the available Bluetooth app for Apple and Android devices.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with included solid state sending units that connect cleanly to their respective terminals. This system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog gauge sweeps plus a full color TFT message center
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for independent needle, sweep, and digital display color control
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting with separate daytime and nighttime themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep
- LED-lit onboard capacitive touch pushbuttons for setup and driving mode functions
- Bluetooth app compatibility for Android and Apple devices for setup, calibration, and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs to match control buttons
Specifications
- Part Number: HDX-65F-MUS-S
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-120 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
