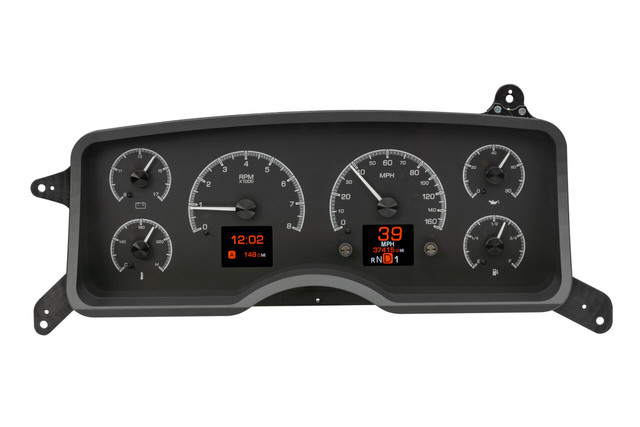

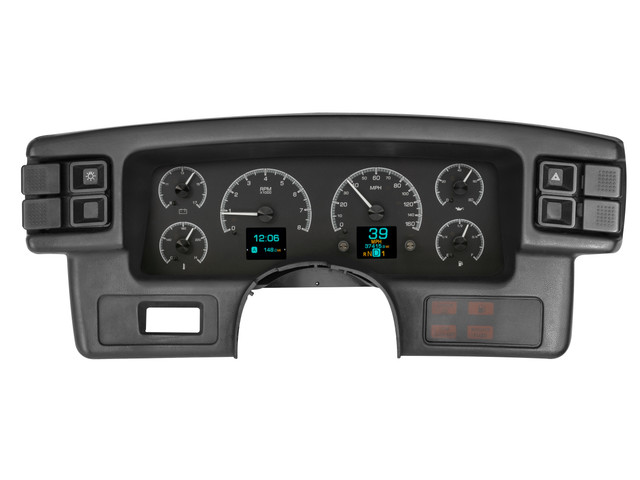

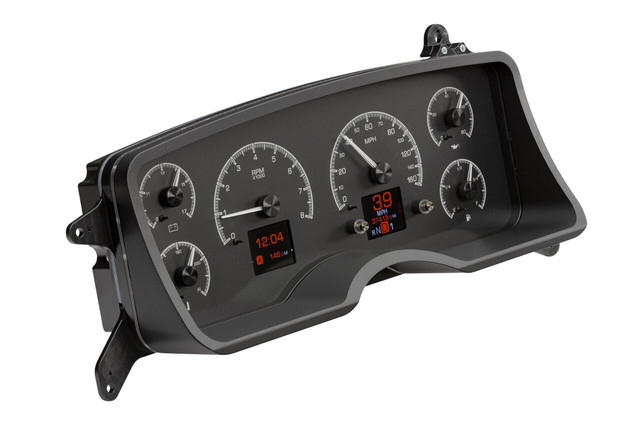

The Dakota Digital HDX-87F-MUS-K is a complete HDX instrument system engineered for the 1987-89 Ford Mustang, featuring a black alloy gauge-face design that fits directly into the stock cluster and housing. This system combines six analog instruments with a large, full-color TFT message center that can be fully programmed to the driver's preferences.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and the message center, with over 30 LED backlighting color options available. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators, including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators, along with a red, settable warning light for each gauge. A central control box simplifies installation using vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. This system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Black alloy gauge-face styling with user-selectable illumination colors
- Six analog instruments plus a full-color TFT digital message center
- Over 30 user-selectable LED backlighting color options for needles, sweep, and display
- 12 factory preset color themes or fully customizable color zones
- Built-in capacitive-touch pushbutton controls with Bluetooth app compatibility for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each analog gauge
- Central control box with vehicle-harness sourced signal connections for simplified installation
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
Specifications
- Part Number: HDX-87F-MUS-K
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Optional DIM-1 accessory available for on-the-fly rotary dimming control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
