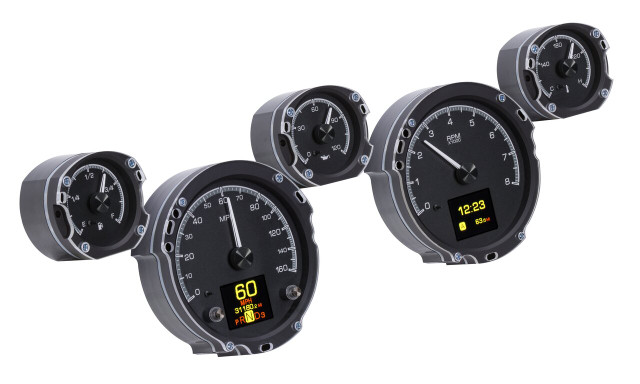

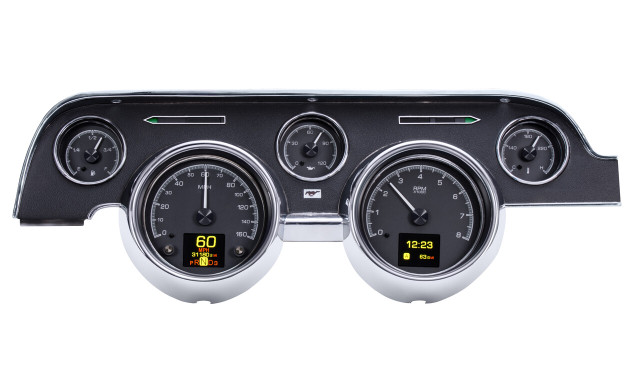

The Dakota Digital HDX-67F-MUS-K is a five-gauge analog instrument system engineered specifically for the 1967-68 Ford Mustang, bolting directly into a stock or reproduction factory bezel. This system features a black alloy gauge face and twin TFT message centers, delivering a blend of classic styling with modern electronic capability.

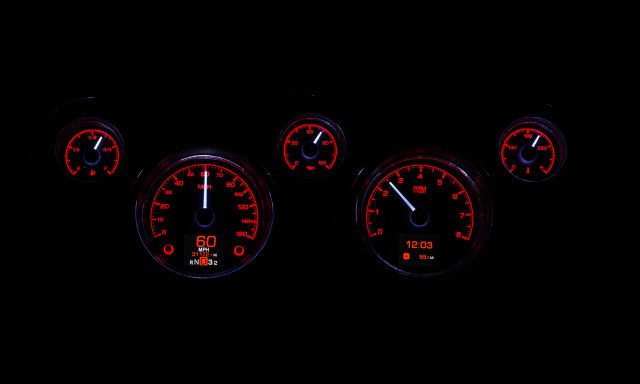

The HDX system allows the user to select independent illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Five-gauge analog system with black alloy gauge-face styling
- Twin TFT message centers
- Independently selectable illumination colors for gauge readings, needles, and message centers
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Settable red warning light for each gauge
- LED-lit onboard capacitive touch pushbuttons for quick access to all functions
- Button-press feedback through the TFT Message Center or included buzzer
- Compatible with optional remote mounted switches
- Full system configuration available through Bluetooth app for Apple and Android devices
- Central control box with vehicle-harness sourced signals for simplified installation
Specifications
- Part Number: HDX-67F-MUS-K
- Vehicle Application: 1967-68 Ford Mustang
- Gauge Face Color: Black
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure Sensor: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
Included Sensors
- Water temperature sensor with 10 ft harness
- Oil pressure sensor with 10 ft harness
- Cable driven speed sensor/generator with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required
- Speedometer calibration can be bypassed when used with GPS-50-2 (sold separately)
