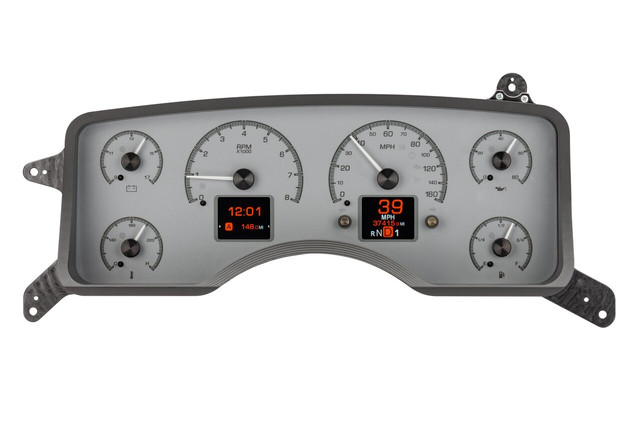

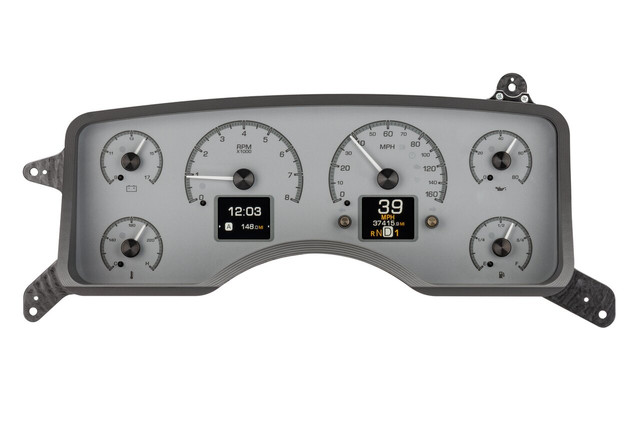

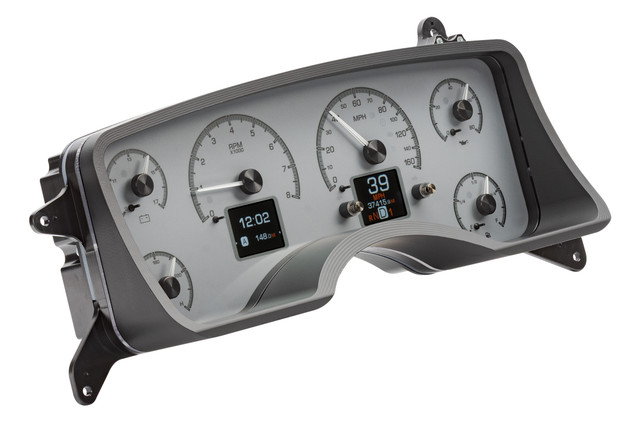

The Dakota Digital HDX-90F-MUS-S is a complete HDX instrument system engineered for 1990-93 Ford Mustang (Fox Body) applications, featuring a silver alloy gauge-face styling that fits cleanly into the stock cluster and housing. The system combines six analog instruments with a large, full-color TFT message center that can be programmed to the user's preference.
Each HDX system allows independent selection of illumination colors for the gauge readings, needles, and message center, with over 30 LED backlighting color options available. Calibration and personal settings are managed through built-in, capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons.

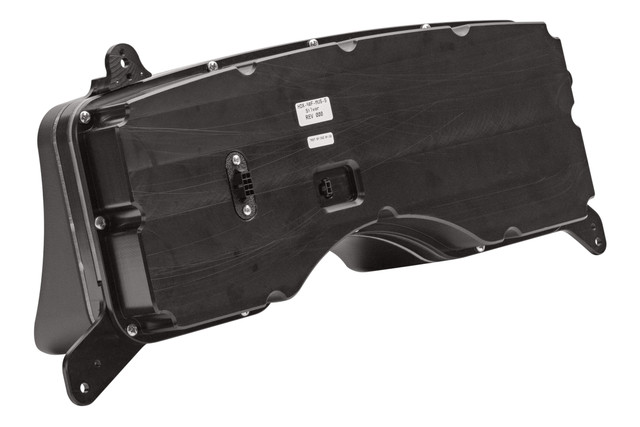

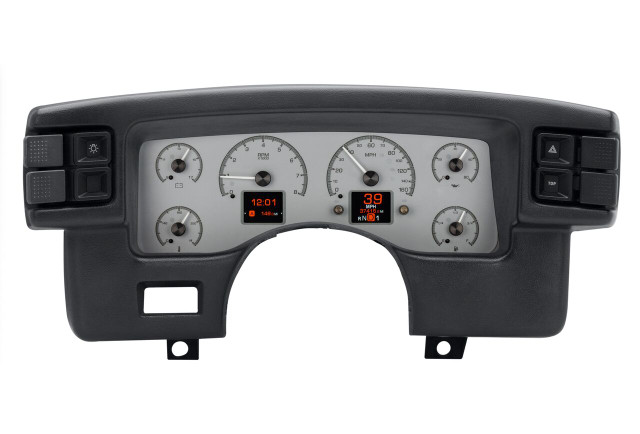

Installation is simplified with a central control box that utilizes vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals. This system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog instruments with large full-color TFT message center
- Silver alloy gauge-face styling
- Over 30 user-selectable LED backlighting color options for needles, sweep, and digital display
- 12 factory preset color themes, plus full custom color zone selection
- Independent daytime and nighttime brightness control via headlight switch activation
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each analog gauge
- Onboard capacitive-touch pushbutton controls with buzzer feedback
- Full system configuration and real-time gauge readouts available through Bluetooth app
- Central control box with vehicle-harness sourced signals for simplified installation
Specifications
- Part Number: HDX-90F-MUS-S
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH with 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus bushings for 12mm and 16mm x 1.5 threads
Built-in Indicators
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (optional GSS-3000 sensor required)
- 4 x 4 (when vehicle is equipped)
- Wait to Start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for on-the-fly rotary dimmer control (sold separately)
