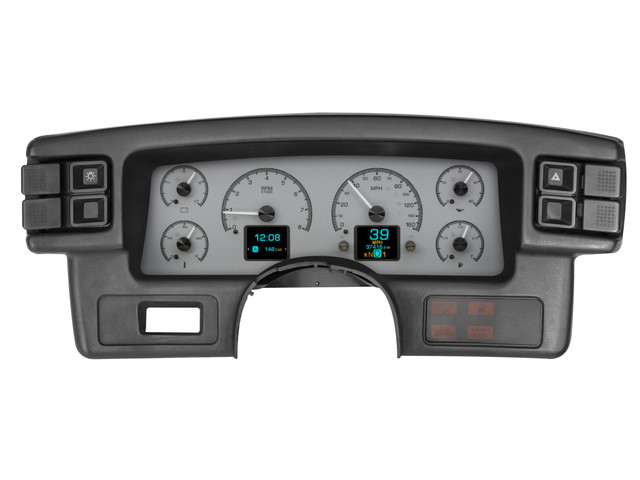

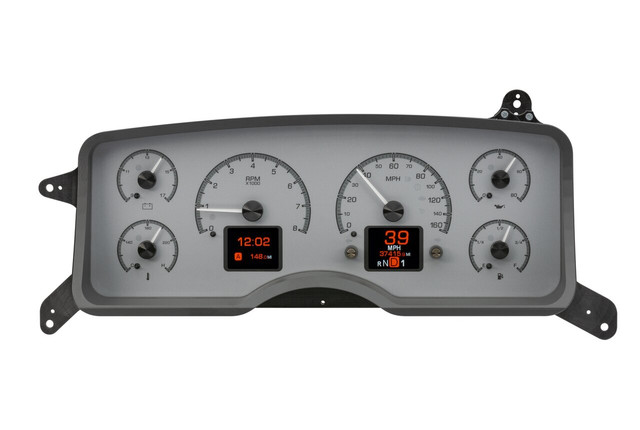

The Dakota Digital HDX-87F-MUS-S is a complete HDX instrument system engineered for the 1987-89 Ford Mustang, featuring a silver alloy gauge-face finish that installs directly into the stock cluster and housing. The system combines six analog instruments with a large, full-color TFT message center that can be fully customized to the driver's preference.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with over 30 LED backlighting color options available. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
The system uses an OEM or reproduction style bezel, which is not included. Installation is simplified by a central control box that sources signals from the vehicle harness and connects to supplied, solid-state sending units.
Key Features
- Six analog gauges plus a full-color TFT digital message center
- Silver alloy gauge-face styling
- Over 30 user-selectable LED color options for needles, sweep, and TFT display, with 12 factory preset color themes
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning indicator built into each analog gauge sweep (except speedometer)
- Onboard capacitive-touch pushbutton controls with buzzer feedback
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs
- Central control box with vehicle-harness sourced signals for simplified installation
Specifications
- Part Number: HDX-87F-MUS-S
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer with 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushing kit: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for Gear Position indicator functionality
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
