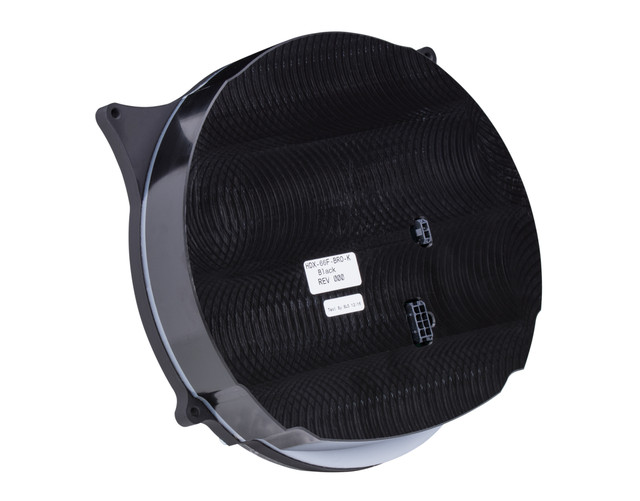

The Dakota Digital HDX-66F-BRO-S is a bolt-in HDX instrument system designed for 1966-77 Ford Bronco and 1961-66 Ford Pickup applications, featuring a Silver alloy gauge face. This system replaces the original flat-dash, single-gauge layout with six analog instruments and a 2.4" full-color TFT message center, while retaining the stock trim ring for a clean, factory-style appearance.
Integration with the drivetrain of your choice is simple, thanks to a central control box that simplifies installation with vehicle-harness sourced signals and included solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Six analog instruments plus a 2.4" full-color TFT digital message center
- Retains the factory trim ring for an OEM-style appearance
- Silver alloy gauge-face styling

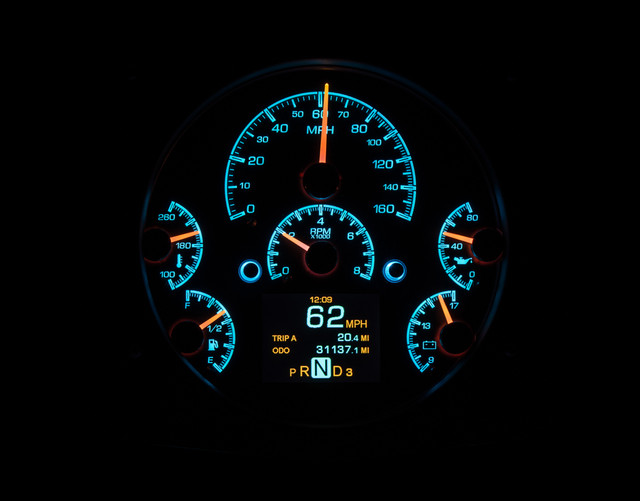

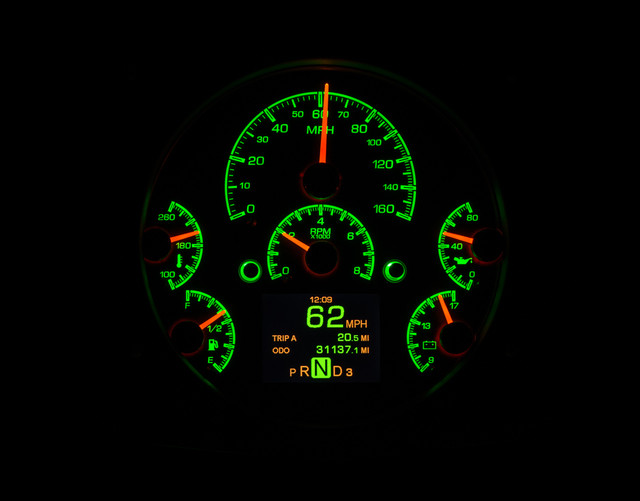

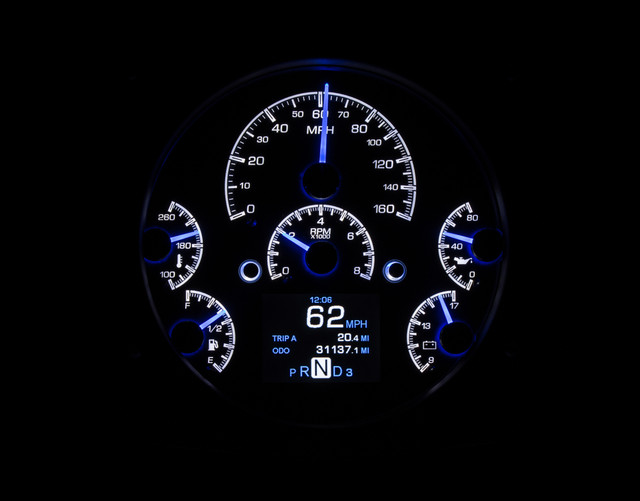

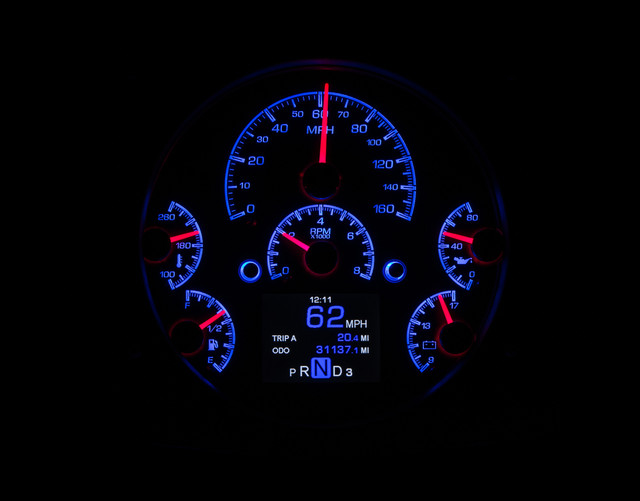

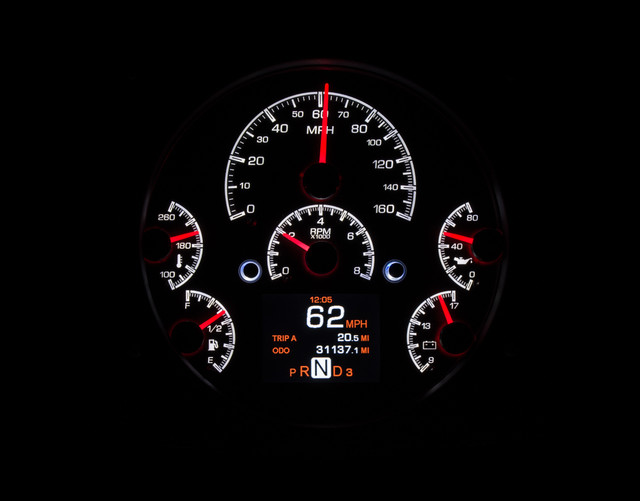

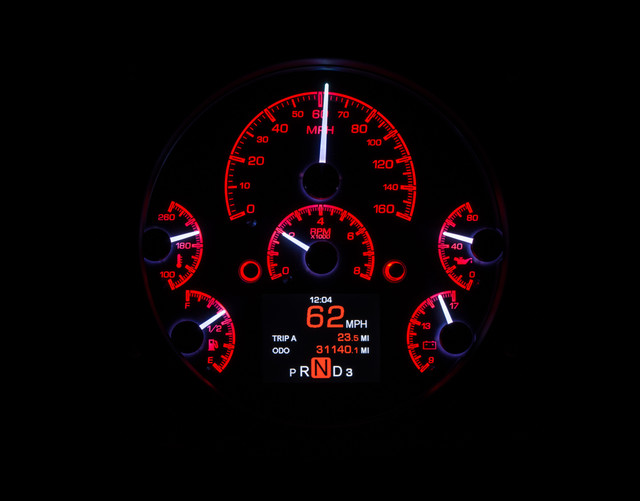

- Independently selectable illumination colors for gauge readings, needles, and message centers, with over 30 user-selectable color options
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Black nickel plated spun-aluminum needle hubs to match the control buttons
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each analog gauge
- Onboard LED-lit capacitive touch pushbuttons for setup and navigation
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time gauge readouts
- Central control box simplifies wiring using vehicle-harness sourced signals
Specifications
- Part Number: HDX-66F-BRO-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour clock
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing Ford and/or GM style speedometer cables (requires approximately 5" clearance; Part # 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
- GPS-50-2 may be used to eliminate the need for speedometer calibration
