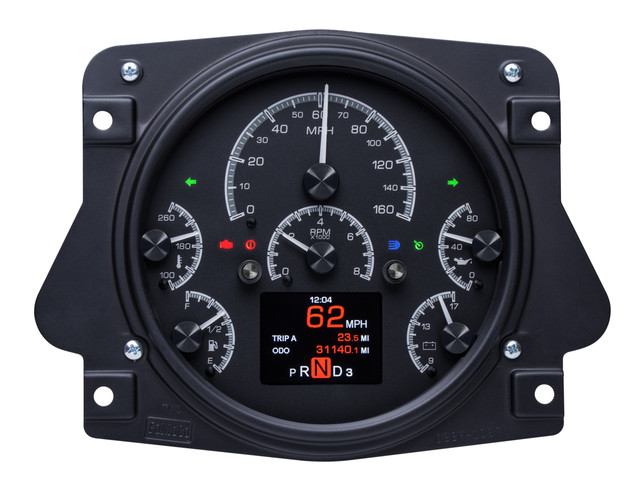

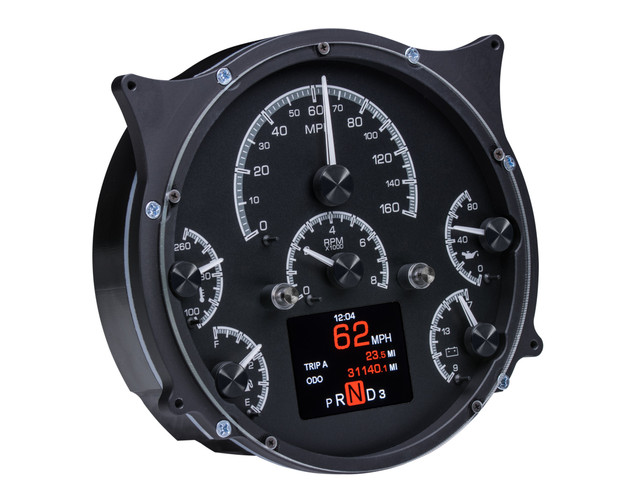

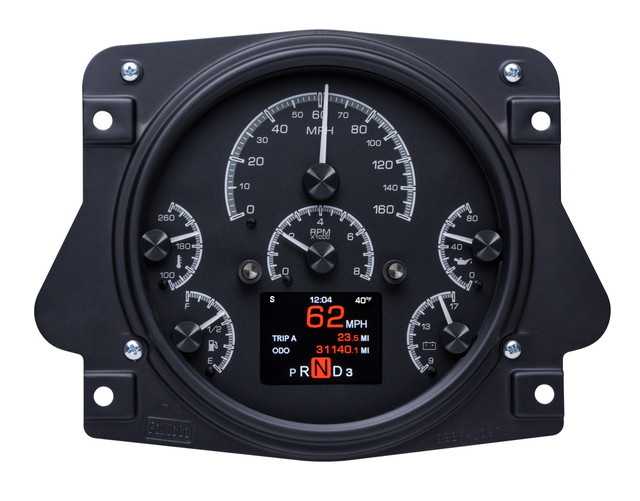

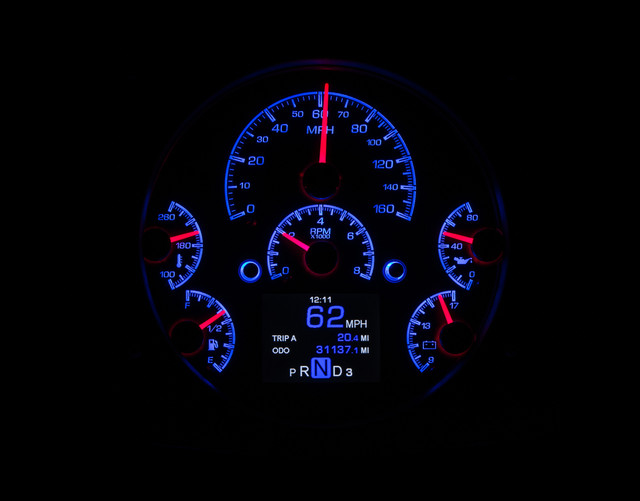

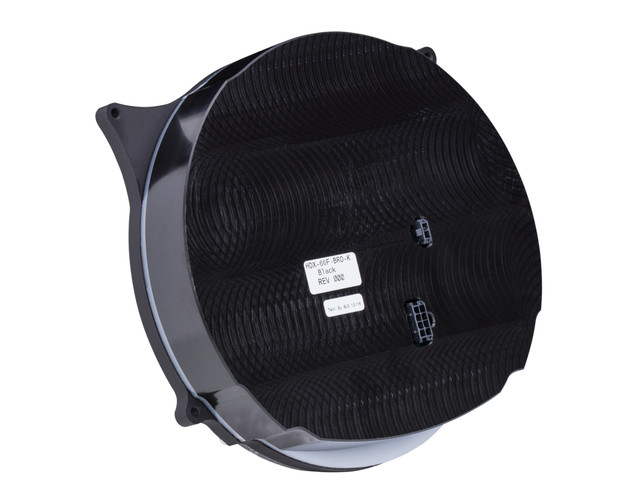

The Dakota Digital HDX-66F-BRO-K is a bolt-in HDX instrument system designed for 1966-77 Ford Bronco and 1961-66 Ford Pickup applications, featuring a black alloy gauge-face finish. This system replaces the original flat dash layout with six analog instruments and a 2.4" full-color TFT message center, while retaining the stock trim ring for a factory-style appearance. Integration with the drivetrain of your choice is straightforward, and the system uses an OEM or reproduction style bezel (bezel not included).
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and the message center display. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Key Features
- Six analog gauges plus a 2.4" full-color TFT digital message center
- Retains the stock trim ring for a clean, factory-style installation
- Black alloy gauge-face styling

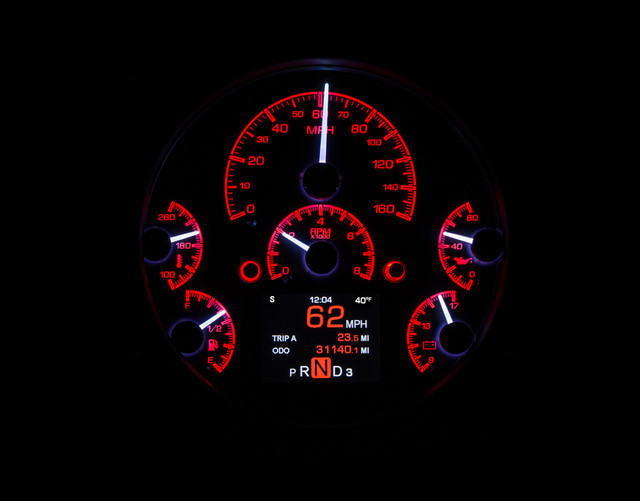

- Over 30 user-selectable color options for needle, sweep, and TFT display colors
- 12 factory preset color themes, plus full custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge sweep
- Central control box simplifies installation using vehicle-harness sourced signals and supplied solid state sending units
- LED-lit onboard capacitive touch pushbuttons with buzzer feedback
- Full system configuration available via Bluetooth app for Android and Apple devices
Specifications
- Part Number: HDX-66F-BRO-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for on-the-fly rotary dimmer control (sold separately)
