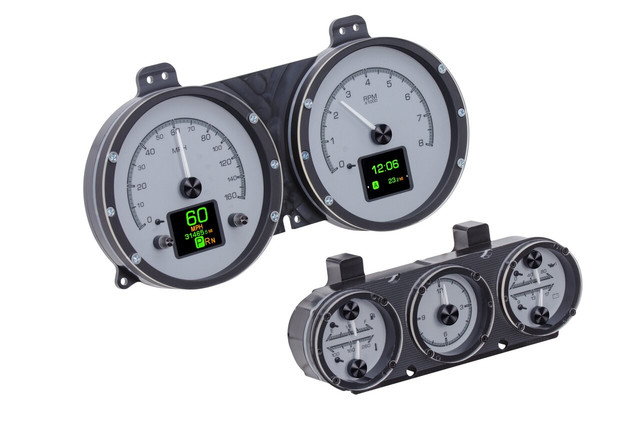

The Dakota Digital HDX-67C-CAC-S is a complete HDX instrument system designed for 1967 Chevy Camaro models equipped with the triple-round console-gauge upgrade. This system fits directly into the stock dash and console instrument housings and features a silver alloy gauge-face styling. It is a complete package and cannot be split up; dash and console bezels are not supplied.
The system includes two TFT message centers plus an analog clock, with independently selectable illumination colors for gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators, including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators, plus a red, settable warning light for each gauge. The central control box simplifies installation with vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling
- Two TFT digital message centers plus a 12-hour analog clock
- Over 30 user-selectable color options for needles, sweep, and digital TFT displays
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting for day and night visibility
- Built-in capacitive touch pushbuttons with Bluetooth app control for Android and Apple devices
- Dead-faced indicators including turn signals, high beam, check engine, parking brake, cruise control, and two auxiliary user-programmable indicators
- Red LED sweep warning indicator on each analog gauge (except speedometer)
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-67C-CAC-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hour Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash and console bezels are not included; system uses OEM or reproduction style bezels
- Gear Position indicator requires optional GSS-3000 sensor
- Speed sensor requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is needed
- DIM-1 accessory is available for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
