Description

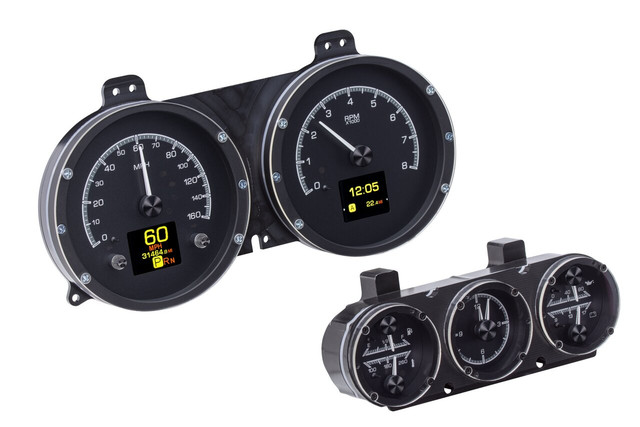

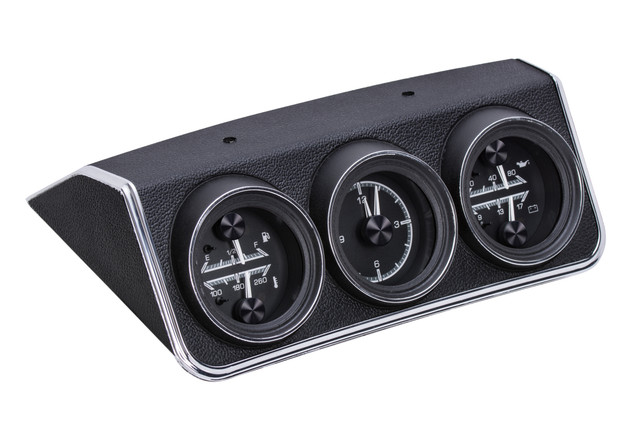

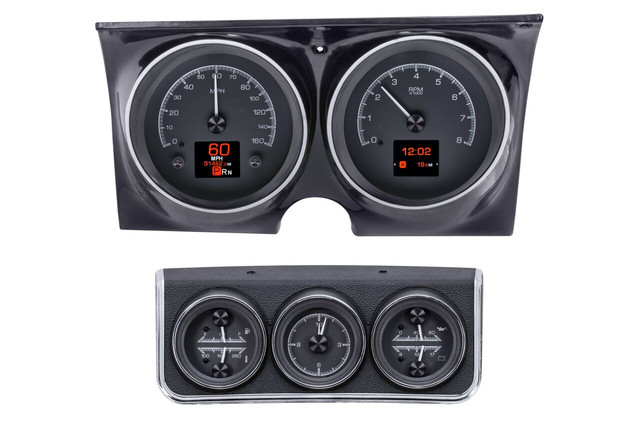

The Dakota Digital HDX-67C-CAC-K is a complete HDX instrument system engineered for 1967 Chevy Camaro applications equipped with the triple-round console-gauge setup. This system fits directly into the stock dash and console instrument housings and adds two TFT message centers plus an analog clock, all finished with a black alloy gauge face. This is a complete package and cannot be split up; dash and console bezels are not supplied.

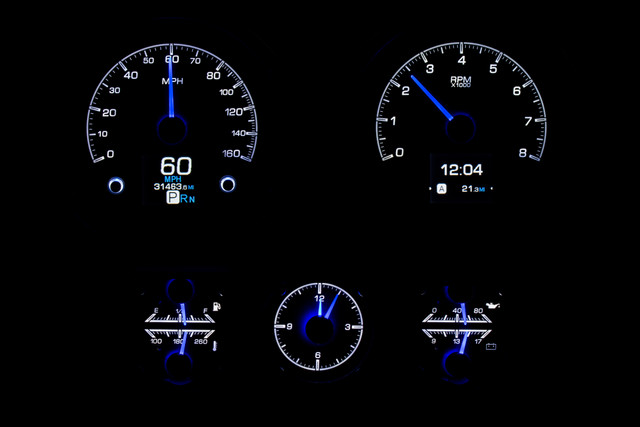

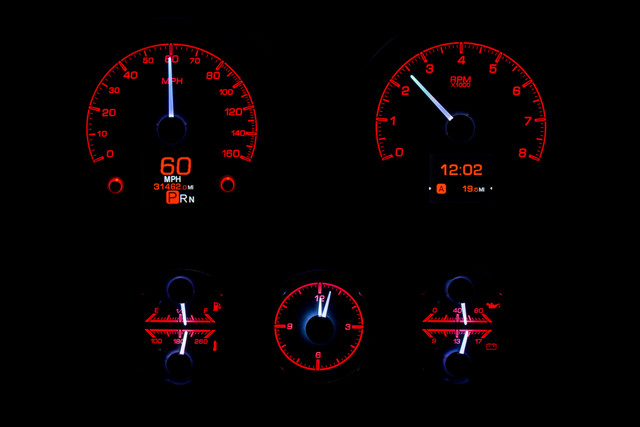

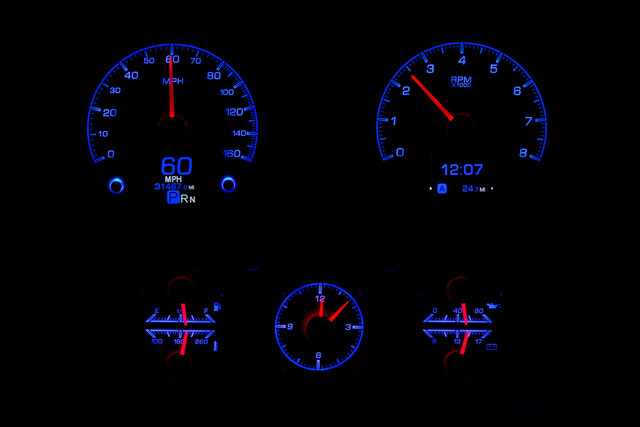

Independent illumination colors can be selected for gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. The system features dead-faced indicators and a red, settable warning light for each gauge, while the central control box simplifies installation with vehicle-harness sourced signals and supplied solid-state sending units.
Key Features
- Black alloy gauge-face styling
- Two TFT digital message centers plus a 12-hour analog clock
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red settable warning LED on each analog gauge sweep (except speedometer)
- Onboard capacitive-touch pushbutton controls with Bluetooth app configuration for Android and Apple devices
- Central control box simplifies wiring with vehicle-harness sourced signals and solid-state sending units
Specifications
- Part Number: HDX-67C-CAC-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash and console bezels are not included; system uses OEM or reproduction style bezels
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary dimmer control
