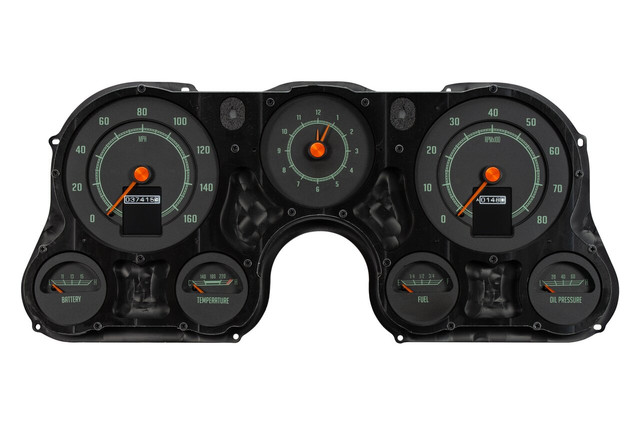

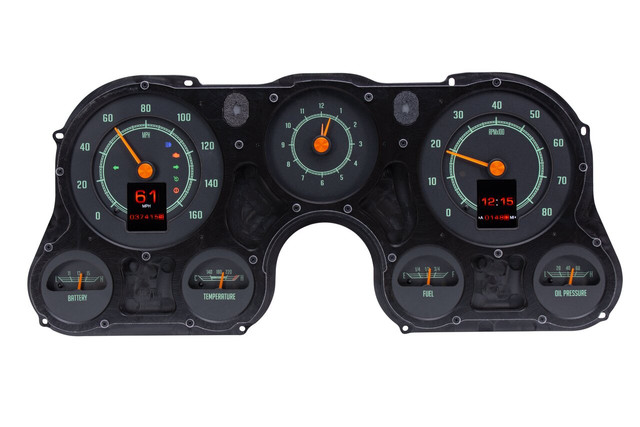

The Dakota Digital RTX-67C-PU-X RTX Instrument System brings late-model technology to your 1967-72 Chevy/GMC pickup while retaining the stock appearance that makes these trucks special. At a glance, the gauge cluster looks like factory equipment, but switch on the ignition and color-changing LED backlighting, dual TFT message centers, and late-model drivetrain compatibility reveal just how far this system goes beyond stock. The analog clock in the center position completes the classic look.
Every detail of the RTX series has been engineered to retain OEM design elements in layout, face styling, and indicators, while CNC-machined housings are filled with in-house designed and built electronics. The high-definition TFT message centers can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
This system requires a stock or reproduction seven-hole bezel for installation; the bezel is not included and is available separately.
Key Features
- Stock-appearing analog gauge faces with full LED backlighting
- Dual TFT message centers for configurable vehicle information
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Pushbutton rocker switch control for setup and driving-mode functions
- Configurable via free mobile app for Android and Apple devices
- Central control box for simplified installation and setup
- Late-model drivetrain compatibility
- Analog clock in the center gauge position
Specifications
- Part Number: RTX-67C-PU-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft. harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft. harness
- Cable-Driven Speed Sensor/Generator replacing GM-style speedometer cables, with 10 ft. harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and dual TFT message centers
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable-driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Requires a stock or reproduction seven-hole bezel for installation (bezel not included); available separately as ICM-67C-PU
- Gear Position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
