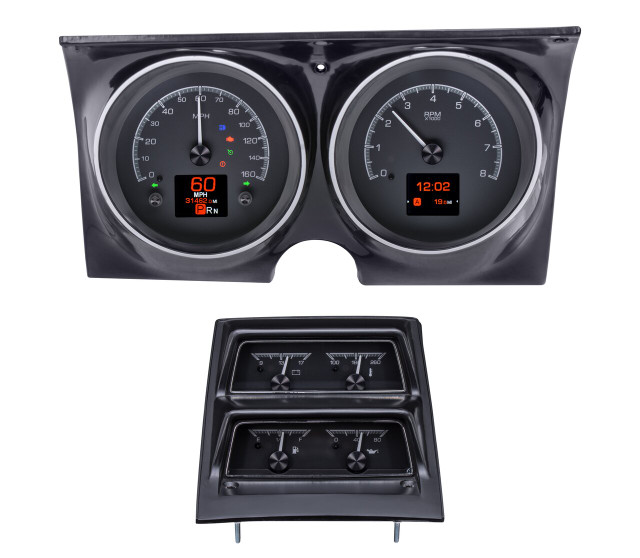

The Dakota Digital HDX-68C-CAC-K is a complete bolt-in HDX instrument system designed for 1968 Chevy Camaro models equipped with console gauges. This system upgrades the factory console gauge location with six analog readings plus twin TFT message centers, allowing the driver to view all vital information at a glance without disturbing the original factory housings. This is a complete package and cannot be split up.
This system features black gauge-face styling with user-selectable illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.

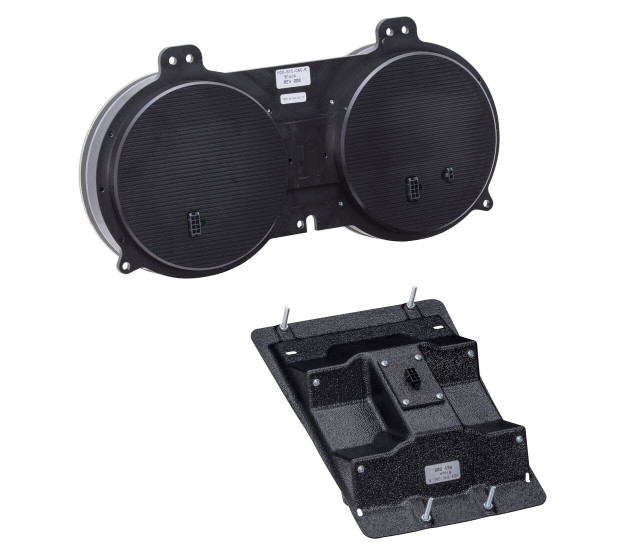

Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied solid state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel; dash and console bezels are not supplied.
Key Features
- Six analog gauges plus twin TFT digital message centers
- Black gauge-face styling with independently selectable colors for needles, gauge sweep, and digital displays
- Over 30 user-selectable color options and 12 factory preset color themes
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge sweep
- Onboard capacitive-touch pushbuttons with Bluetooth app control for Apple and Android devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-68C-CAC-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer, top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads
Notes
- Dash and console bezels are not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for Gear Position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
