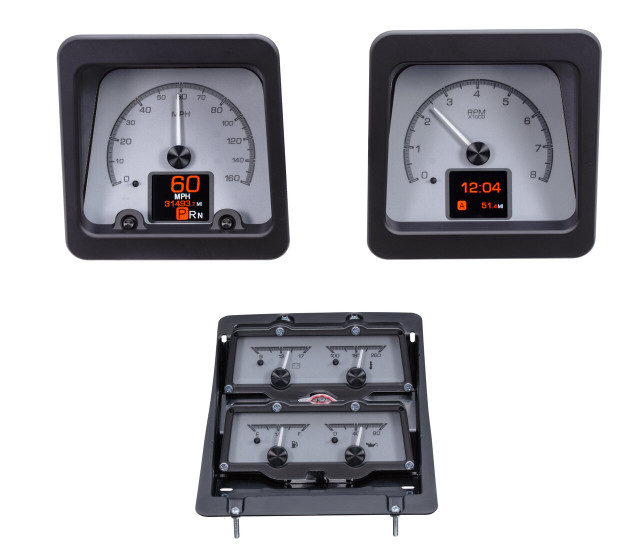

The Dakota Digital HDX-69C-CAC-S is a complete HDX instrument system designed specifically for the 1969 Chevy Camaro equipped with the center console gauge option. This highly sought-after configuration pairs two TFT message centers with six analog readings, all presented in a Silver alloy gauge-face finish. Original instrument lenses and indicator strips are eliminated and replaced with billet aluminum, black powder coated trim rings for a clean, upgraded appearance.
Main and satellite instruments fit into the existing plastic bezels and housings of the 1969 Camaro console. As part of a complete system, these center console instruments are designed to work in conjunction with the full HDX setup and cannot be used stand-alone.
The HDX system allows independent illumination color selection for gauge readings, needles, and message centers, all controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling
- Two TFT digital message centers plus six analog gauges
- Billet aluminum, black powder coated trim rings replace original lenses and indicator strips
- Over 30 user-selectable color options for independent needle, sweep, and TFT display colors
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep
- Built-in capacitive touch pushbuttons with Bluetooth app configuration for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs to match control buttons
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
Specifications
- Part Number: HDX-69C-CAC-S
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Center console gauge bezel/trim/facia is not included
- Speedometer and tachometer fit into OEM or reproduction style gauge carrier/bezel/trim/facia
- Main bezel is sold separately
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
