Description

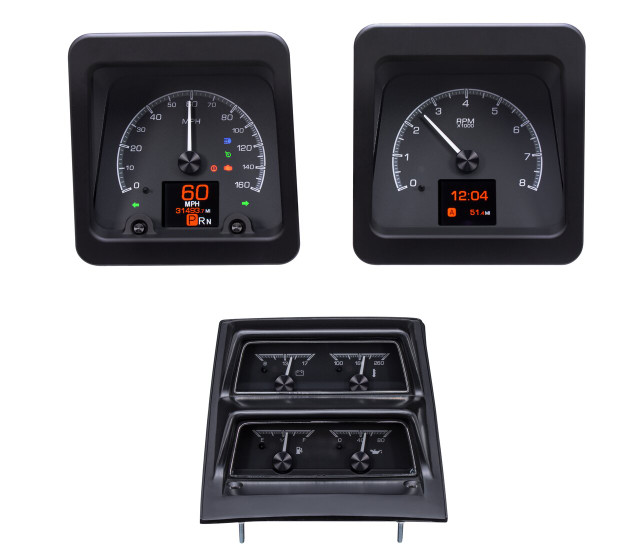

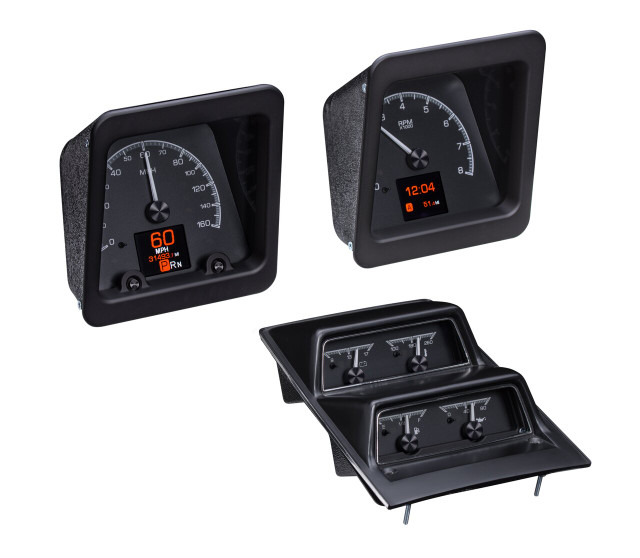

The Dakota Digital HDX-69C-CAC-K is a complete HDX instrument system engineered specifically for the 1969 Chevy Camaro center console gauge option, finished with a black gauge face. This highly sought-after upgrade combines two TFT message centers with six analog readings, delivering a modern, fully customizable instrument package while retaining the factory console gauge layout.

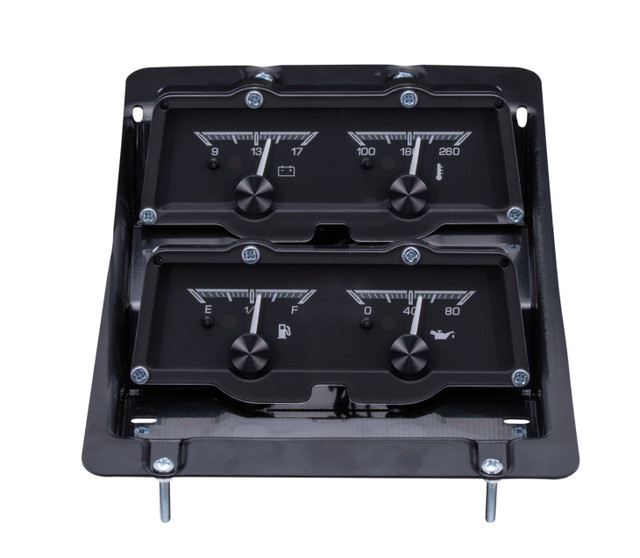

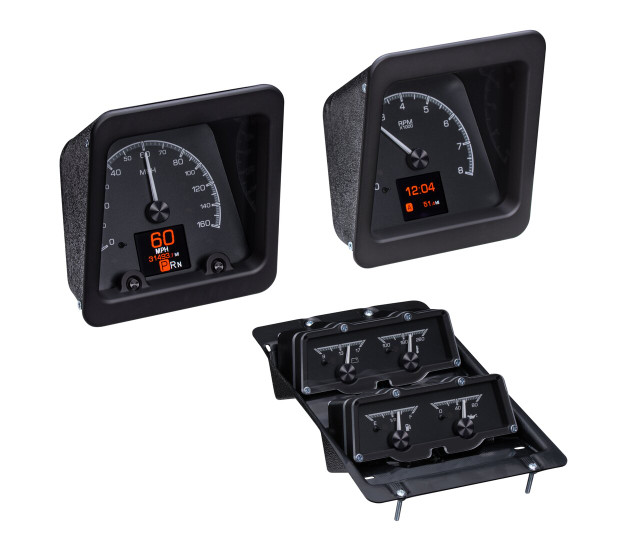

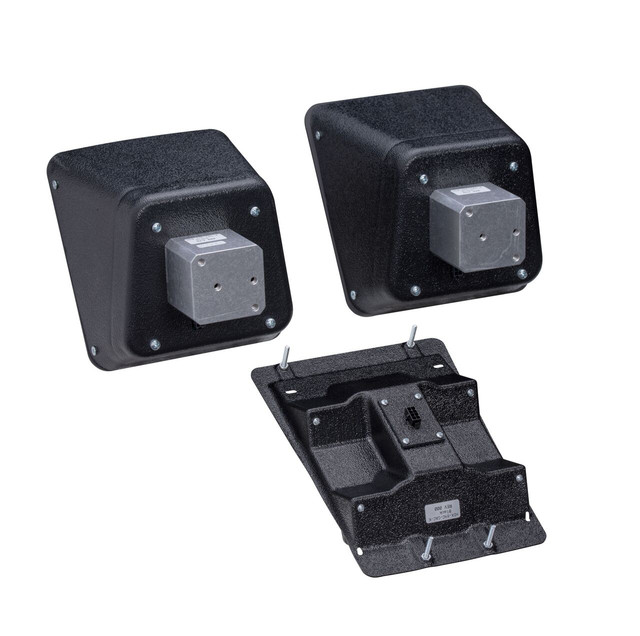

Original instrument lenses and indicator strips are eliminated in favor of a billet aluminum, black powder coated trim ring, and the main and satellite instruments install into the existing plastic bezels/housings. This center console instrument system is part of the main HDX system and cannot be used stand-alone.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and message centers, with calibration and settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
Key Features
- Black alloy gauge-face styling with billet aluminum, black powder coated trim ring
- Two TFT digital message centers paired with six analog gauges
- Over 30 user-selectable color options for needles, sweep, and digital TFT displays
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Capacitive-touch pushbutton controls through the gauge face with buzzer feedback
- Bluetooth app control and diagnostics for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable auxiliary indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
Specifications
- Part Number: HDX-69C-CAC-K
- Gauge Face Color: Black
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 sold separately for relocation if additional clearance is needed)
- NPT bushings: 1/8" to 1/4", 3/8", and 1/2", plus 12mm and 16mm x 1.5 thread bushings
Notes
- Center console gauge bezel/trim/facia is not included and must be sourced separately; main bezel also sold separately (see ICM-69C-CAM)
- Speedometer and tachometer fit into OEM or reproduction style gauge carrier/bezel/trim/facia
- Center console instruments are part of the main HDX system and cannot be used stand-alone
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
