Description

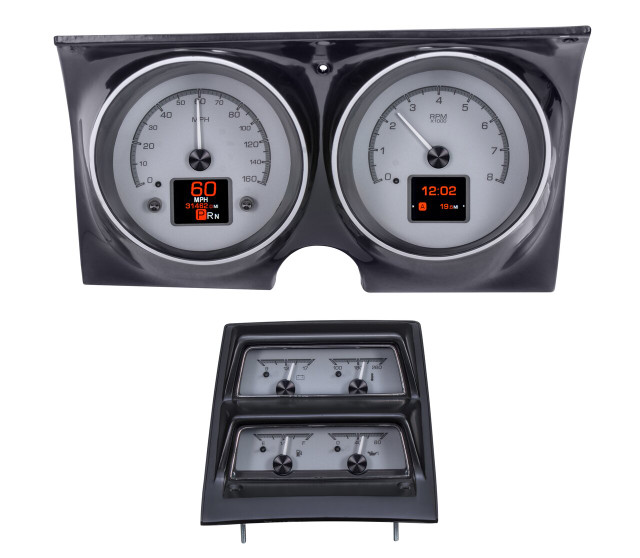

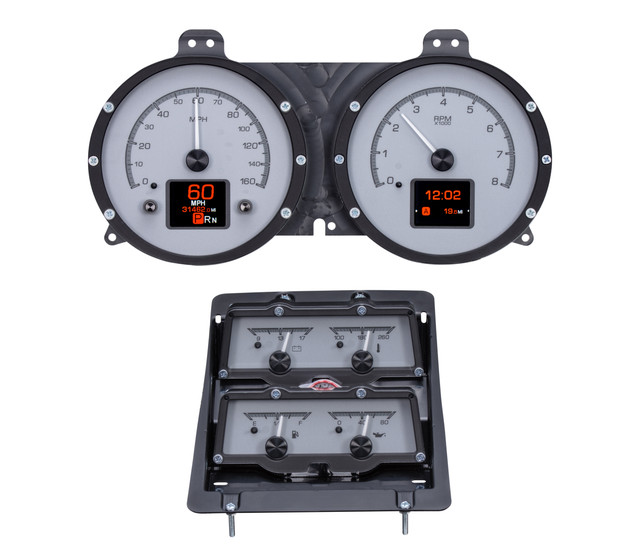

The Dakota Digital HDX-68C-CAC-S is a complete bolt-in instrument system designed specifically for the 1968 Chevy Camaro with factory console gauges. This HDX system upgrades the original four-gauge console cluster with six analog readings plus twin TFT message centers, allowing the driver to view all vital information at a glance while retaining the look of the original factory housings. This is a complete package and cannot be split up.
This system features silver alloy gauge-face styling and allows independent selection of illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by using vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals.
Dash and console bezels are not included; the system is designed to use an OEM or reproduction-style bezel.
Key Features
- Six analog gauges plus twin TFT digital message centers
- Silver alloy gauge-face styling

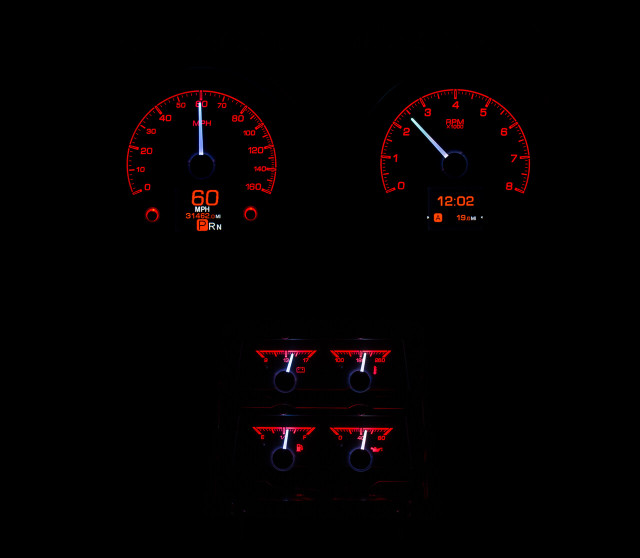

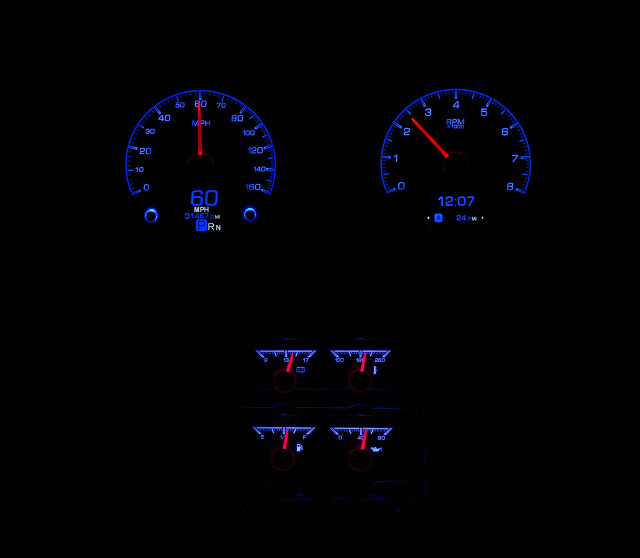

- Independently selectable illumination colors for needles, gauge sweeps, and message centers, with over 30 user-selectable color options
- 12 factory preset color themes or full custom color zone selection
- Full LED/RGB backlighting for strong day and night visibility
- Black nickel plated spun-aluminum needle hubs to match control buttons
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each gauge sweep
- Onboard capacitive-touch pushbutton controls with buzzer feedback
- Bluetooth app control and real-time gauge readout for Apple and Android devices
- Simplified installation using vehicle-harness sourced signals and included solid-state sending units
Specifications
- Part Number: HDX-68C-CAC-S
- Speedometer: 0-160 MPH (split scale providing 120 MPH resolution)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user-settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction; relocation part available separately for additional clearance)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- This is a complete package and cannot be split up
- Dash and console bezels are not included; system is designed to use an OEM or reproduction-style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available separately for on-the-fly rotary dimmer control
