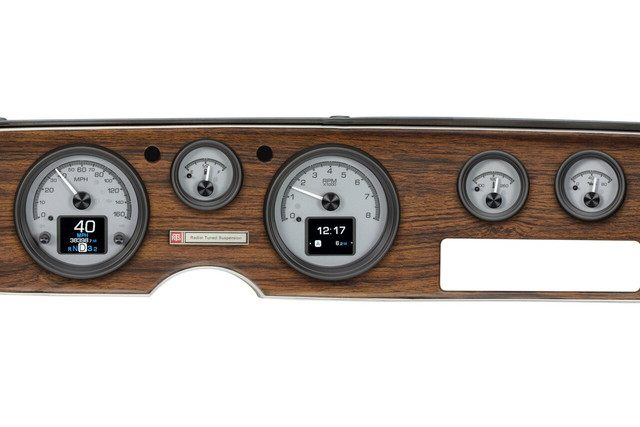

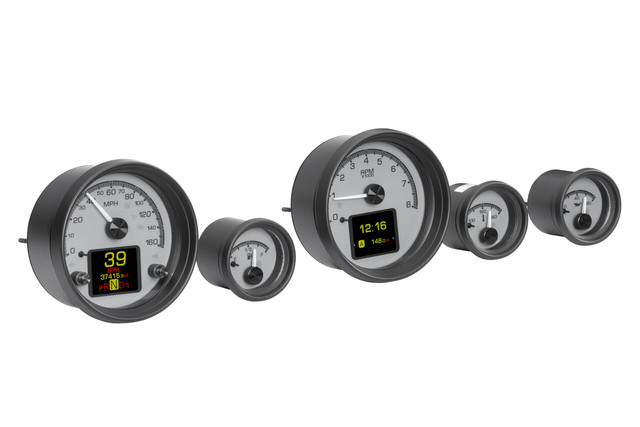

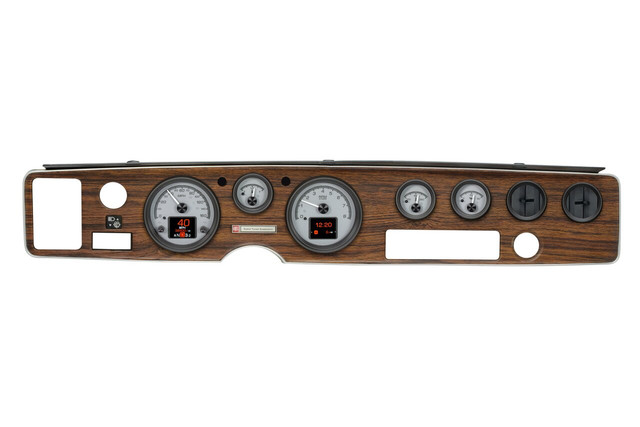

The Dakota Digital HDX-70P-FIR-S is a direct drop-in instrument system designed for 1970-81 Pontiac Firebird and Trans Am models, featuring a silver alloy gauge-face styling to complement the factory dash layout. This system includes matte-black, machined aluminum gauge bezels along with twin TFT message displays, bringing modern digital technology to a classic dash design.
The HDX system comes with five gauges, but for owners with a three-gauge dash who prefer not to drill extra holes, the Oil Pressure and Water Temperature gauges can be omitted, with that information remaining accessible through the message centers.
Each HDX system allows independent illumination color selection for gauge readings, needles, and message centers, with calibration and settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Key Features
- Silver alloy gauge-face styling with matte-black, machined aluminum gauge bezels
- Twin TFT message displays standard
- Five-gauge kit; Oil Pressure and Temperature gauges optional for three-gauge dash applications
- Over 30 user-selectable color options for needle, sweep, and digital TFT display color
- 12 factory preset color themes or fully custom color zone selection
- Full RGB LED backlighting with unique daytime and nighttime theme capability
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Capacitive-touch pushbutton controls on the gauge face with onboard buzzer feedback
- Full system calibration and configuration available via Bluetooth app for Android and Apple devices
- Central control box simplifies installation with vehicle-harness sourced signals
Specifications
- Part Number: HDX-70P-FIR-S
- Speedometer: 0-160 MPH, split scale providing 120 MPH resolution
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: displayed in Digital Message Center
- Odometer: one-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock and Estimated Range/Miles to Empty display
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; approximately 5" clearance required between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel, facia, and dashboard are not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
