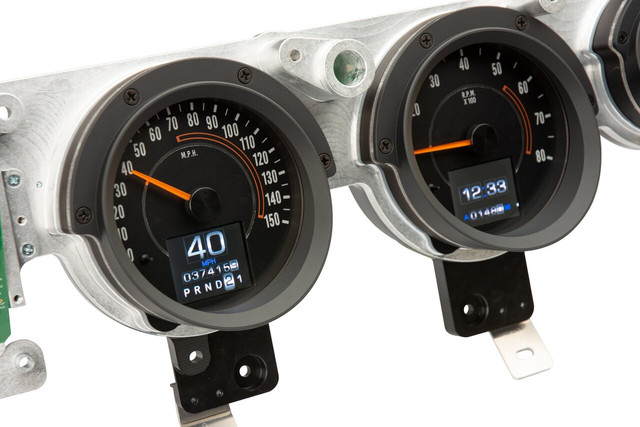

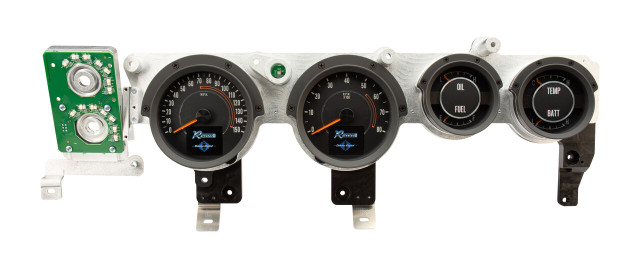

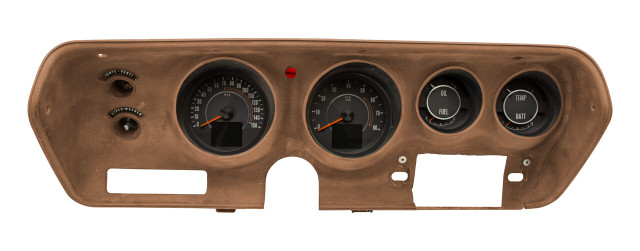

The Dakota Digital RTX-71D-CHG-X Instrument System brings late-model technology to 1971-74 Dodge Charger models while retaining the iconic Rallye-style multi-gauge dash appearance. Designed to mount directly into the factory steel dash structure, this system is overlaid by the OEM front gauge bezel, preserving the deeply held B-body look while delivering a fully modern instrument experience.
New LED backlighting is integrated within the OEM headlight and wiper switch, matching the user-customizable color options offered throughout the RTX family. As part of the RTX series, this system focuses on retaining a stock appearance without sacrificing the features expected from a modern instrument cluster. OEM design elements regarding layout, face styling, and indicators have been carefully incorporated so that, at a glance, the gauges appear factory original—until the LED backlighting comes to life in your chosen color scheme.
Each RTX instrument cluster begins as a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
Key Features
- CNC-machined gauge housings with in-house designed electronics
- High-definition TFT digital message center with configurable displays
- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton rocker switch control for setup and driving mode functions, with buzzer feedback
- Configurable through included pushbutton switch or free mobile app (Android and Apple compatible)
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, and more
- Red LED sweep indicators on each analog gauge for quick warning notice (except speedometer)
- Two auxiliary input indicators with user-programmable labels
Specifications
- Part Number: RTX-71D-CHG-X
- Speedometer: 0-150 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock and Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX-71D-CHG-X instrument cluster with CNC-machined housing
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- Assorted NPT and metric bushings
Notes
- OEM front gauge bezel is not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 is available separately for relocating the pulse generator when additional clearance is needed
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
