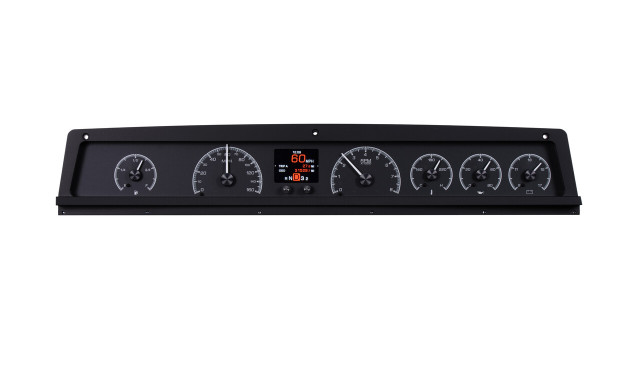

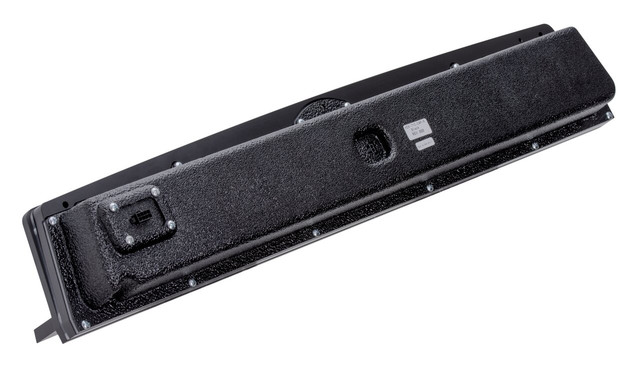

The Dakota Digital HDX-71C-CAP-K HDX System is a drop-in replacement instrument cluster designed specifically for 1971-76 Chevy Impala and Caprice models, featuring a black gauge-face styling. Required sending units are included for a painless installation, and a large TFT message center allows full customization of auxiliary readings to keep the driver informed of under-hood conditions.
This HDX system gives the user independent control over illumination colors for gauge readings, needles, and message centers, allowing the display to be matched to any paint scheme. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to complement the black nickel buttons.
With the central control box, installation is simplified through vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals. This system uses an OEM or reproduction-style bezel, which is not included.
Key Features
- Black alloy gauge-face styling with user-adjustable illumination colors

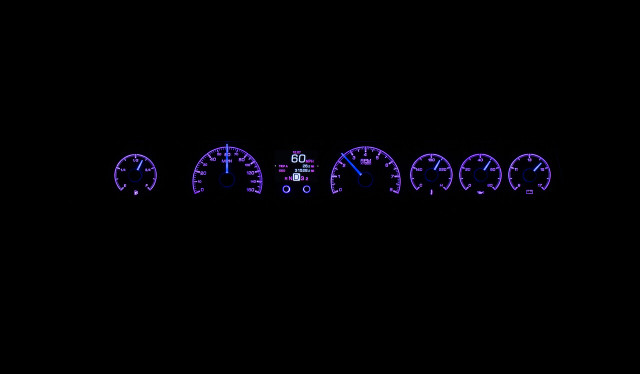

- Over 30 user-selectable color options for independently setting needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or full custom color zone selection
- Full LED/RGB backlighting for sharp contrast day and night

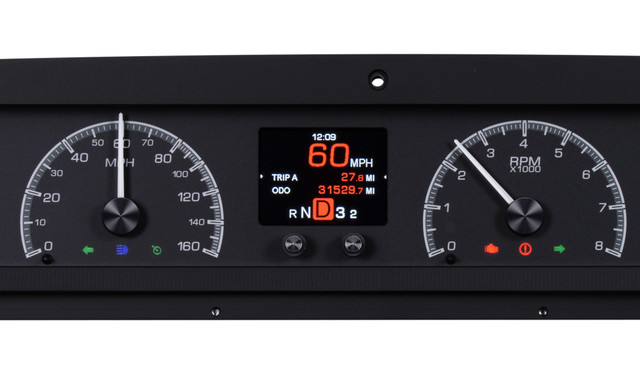

- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Built-in capacitive-touch pushbuttons with LED-lit controls directly on the gauge face
- Full system configuration and real-time readouts available via free Bluetooth app
- Large TFT message center with customizable auxiliary readings
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time/trap speed, and high speed/RPM recall
Specifications
- Part Number: HDX-71C-CAP-K
- Fitment: 1971-76 Chevy Impala and Caprice
- Gauge Face Color: Black
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011 sold separately for relocation if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction-style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
