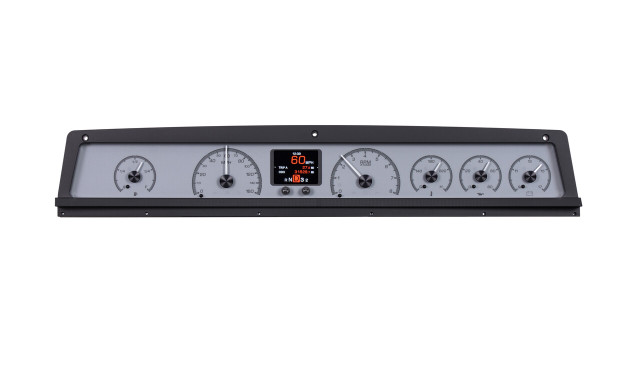

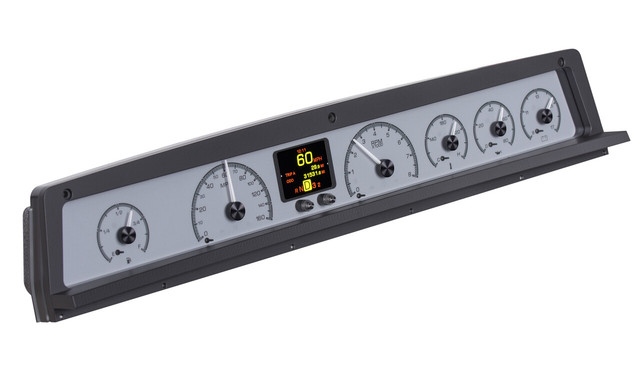

The Dakota Digital HDX-71C-CAP-S HDX Instrument System is a direct, drop-in replacement gauge cluster designed specifically for 1971-76 Chevy Impala and Caprice models, featuring a silver alloy gauge-face styling. This system combines traditional analog gauges with a large TFT message center, giving drivers full customization of auxiliary readings while keeping them informed of under-hood conditions.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and message centers, letting owners match any paint scheme or create a unique look. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Required sending units are included for a painless installation, with a central control box simplifying wiring through vehicle-harness sourced signals.

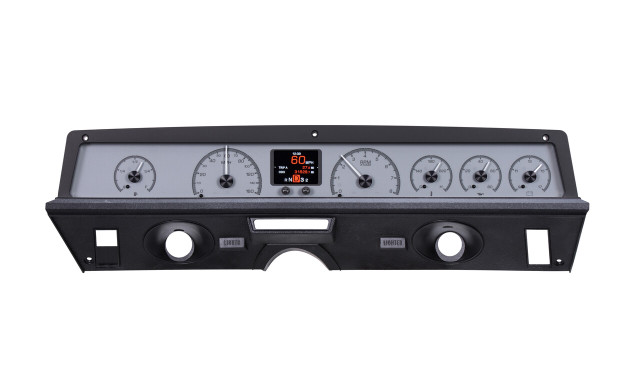

Each needle hub is black nickel plated spun-aluminum to match the control buttons. The system uses an OEM or reproduction style bezel; bezel is not included.
Key Features
- Drop-in replacement designed specifically for 1971-76 Chevy Impala and Caprice
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for needles, sweep, and digital TFT display
- 12 factory preset color themes plus full custom color zone selection

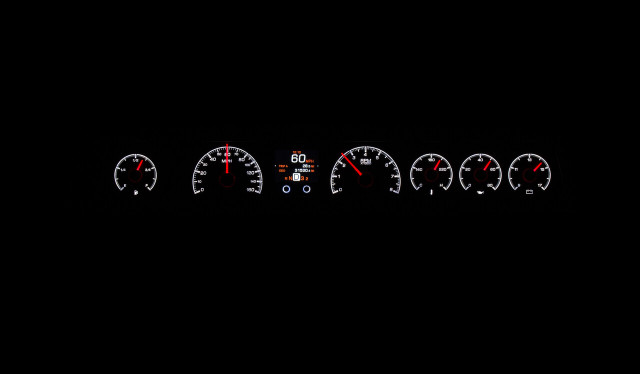

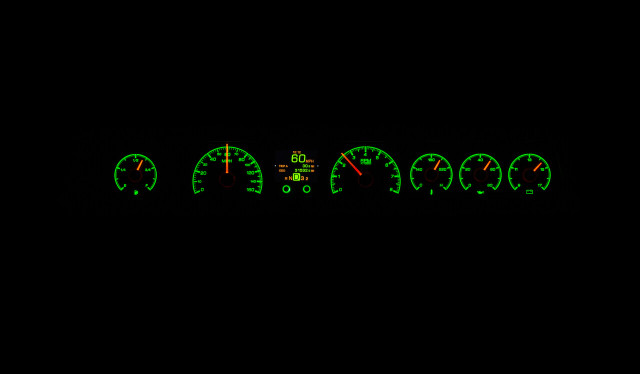

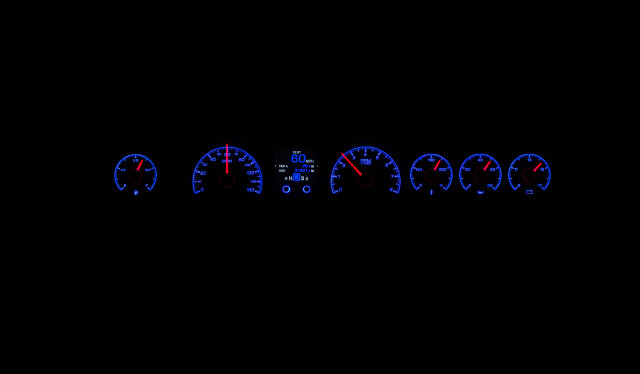

- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each gauge
- Built-in capacitive-touch buttons with Bluetooth app control for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs
- Includes solid state sending units and central control box for simplified installation
Specifications
- Part Number: HDX-71C-CAP-S
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH, top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available for on-the-fly rotary brightness control
