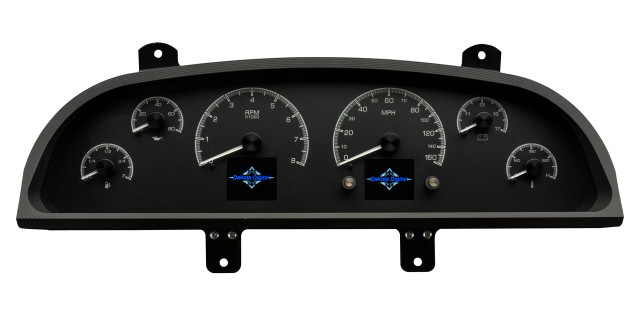

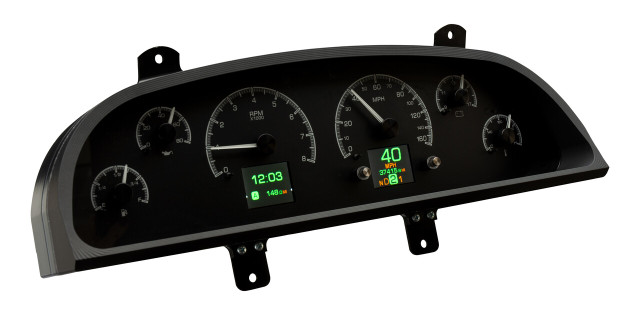

The Dakota Digital HDX-94C-CAP-K is a direct-fit HDX gauge system for 1994-96 Chevrolet Caprice and Impala SS models, featuring a black alloy gauge-face styling that drops right into the stock dash. Whether installed in a retired police car, a sinister Impala SS, or any trim level in between, this system delivers a wealth of information not available from the factory instrumentation.
This HDX system allows independent illumination colors for gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons, and the system features dead-faced indicators along with a red, settable warning light for each gauge.
Installation is simplified through a central control box that uses vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Black alloy gauge-face styling
- Over 30 user-selectable color options for independently changing needle, sweep, and digital TFT display colors
- 12 factory preset color themes, with full customization available
- Full LED/RGB backlighting for sharp daytime and nighttime visibility

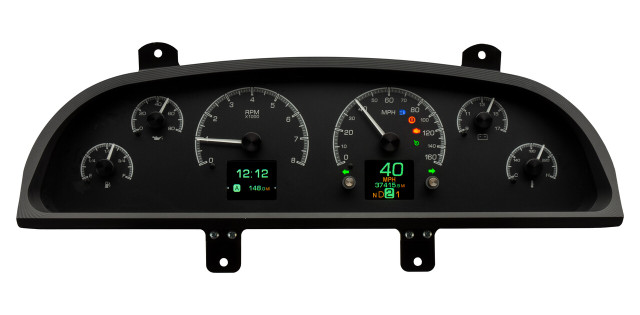

- Dead-fronted indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Onboard capacitive touch pushbutton controls with buzzer and TFT message center feedback
- Bluetooth app compatibility for Apple and Android devices for setup and real-time gauge readouts
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Daytime and nighttime brightness control through the HDX setup menu
Specifications
- Part Number: HDX-94C-CAP-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary dimmer control
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
