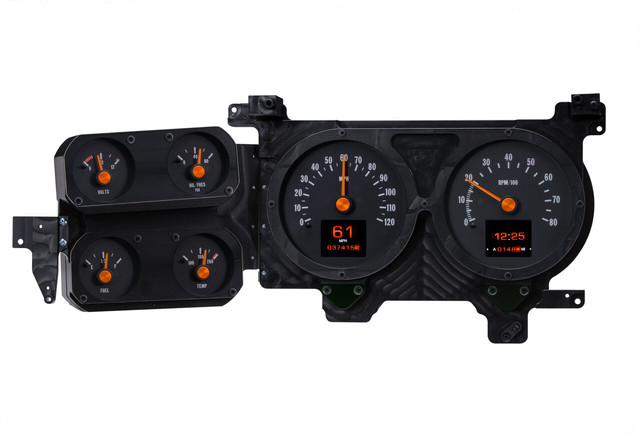

The Dakota Digital RTX-73C-PU-X RTX Instrument System is styled specifically for 1973-75 Chevy pickups, paying tribute to the original gauge design while bringing modern, late-model technology into the mix. This bolt-in system is designed to work with your stock or aftermarket front bezel (not included) and maintains the beloved square-body look, with CNC machined housings and in-house designed electronics raising the bar for aftermarket instrumentation.
Twin high-definition TFT message centers give the appearance of a vintage tumbler odometer while offering fully configurable auxiliary readouts to keep you informed. Factory turn signal indicators are converted to modern LED lighting, and the OEM gear indicator can be retained or displayed digitally with the addition of an optional GSS-3000 sensor. A central control box simplifies installation and setup, consistent with other Dakota Digital instrument systems.
Key Features
- Styled to replicate the 1973-75 Chevy pickup gauge design with late-model functionality
- Bolt-in installation using your stock or aftermarket bezel (not included)
- Twin TFT message centers styled after a vintage tumbler odometer, expandable with auxiliary readings
- Factory turn signal indicators converted to modern LED lighting
- OEM gear indicator retainable, or displayed digitally with optional GSS-3000 sensor
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Programmed and operated via included two-sided pushbutton rocker switch
- Fully configurable through the free Dakota Digital mobile app (Android and Apple)
Specifications
- Part Number: RTX-73C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Built-in indicators: turn signals, high beam, check engine, parking brake, cruise control, gear position (with optional GSS-3000), 4x4, wait to start, and two programmable auxiliary indicators
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable-driven speed sensor/generator that replaces GM-style speedometer cables, with 10 ft harness (approximately 5" clearance required between cable drive output and any obstruction; part 130011 available separately for relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes

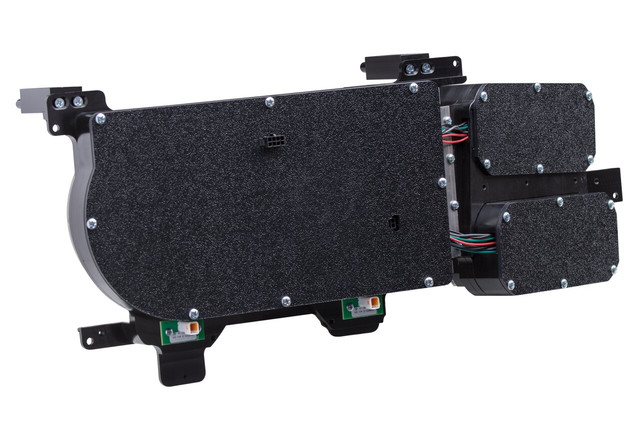

- RTX instrument cluster with central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable-driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes

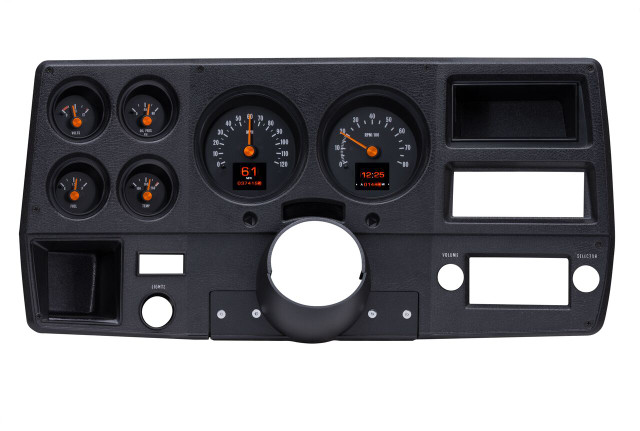

- Bezel not included; system is designed to use your stock or reproduction-style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for digital gear position display
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
