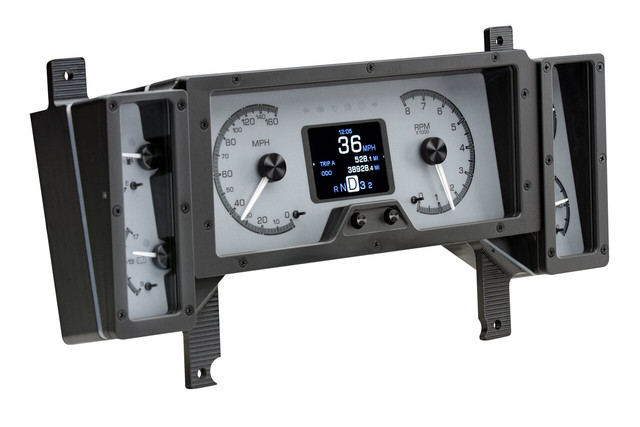

The Dakota Digital HDX-84B-REG-S is a direct-fit instrument system upgrade for 1978-87 Buick Regal, Grand National, and T-Type models, featuring a silver alloy gauge-face finish. Six analog instruments surround a full-color TFT message center display that can be configured to show the information you need, including boost, transmission temperature, fuel pressure, and more at a glance. The system fits into the stock cluster and housing, providing a seamless factory-style installation with modern digital capability.
Independent illumination colors can be selected for the gauge readings, needles, and message centers, with over 30 user-selectable LED lighting colors to suit any paint and interior combination. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
With the included central control box, installation is simplified through vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge.
Key Features
- Direct-fit replacement for the stock instrument cluster and housing in 1978-87 Buick Regal, Grand National, and T-Type models
- Silver alloy gauge-face styling
- Six analog gauges surrounding a full-color TFT digital message center display

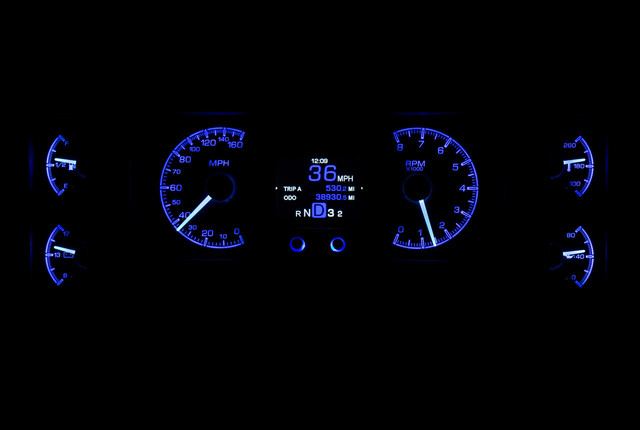

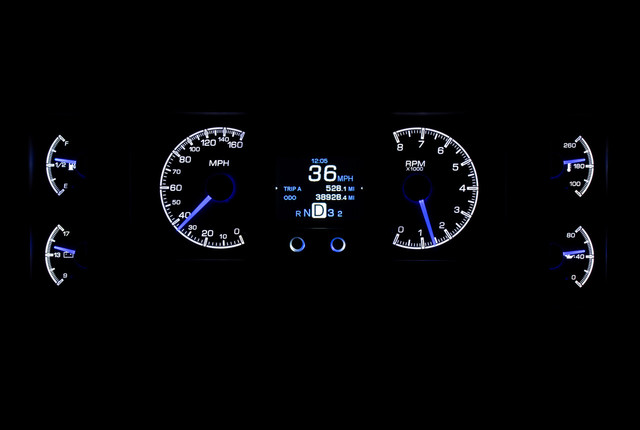

- Over 30 user-selectable LED lighting colors for independent needle, sweep, and digital display illumination
- 12 factory preset color themes, plus fully customizable color zone selection
- Full LED/RGB backlighting for sharp contrast day or night
- Black nickel plated spun-aluminum needle hubs to match control buttons
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep
- Capacitive-touch onboard pushbutton controls with buzzer feedback
- Bluetooth app support for Apple and Android devices for setup and real-time gauge readouts
- Central control box simplifies wiring using vehicle-harness sourced signals and supplied solid-state sending units
- Daytime and nighttime brightness control through the HDX setup menu, toggled by the headlight switch
Specifications
- Part Number: HDX-84B-REG-S
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), dual (A/B) trip meter (0-9,999.9), 12-hour clock, estimated range/miles to empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes

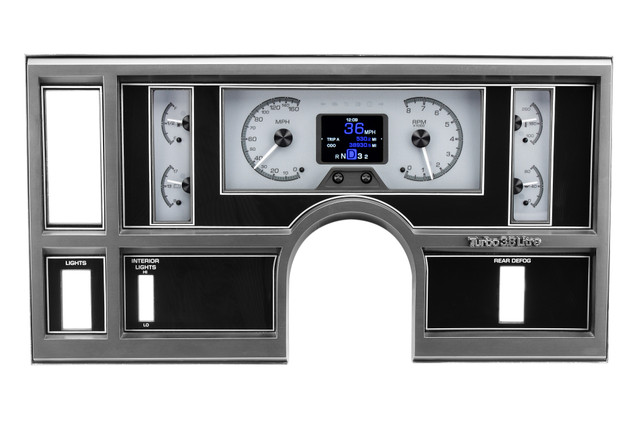

- Requires the use of the factory bezel; bezel not included
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required for the speed sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed to suit your application
