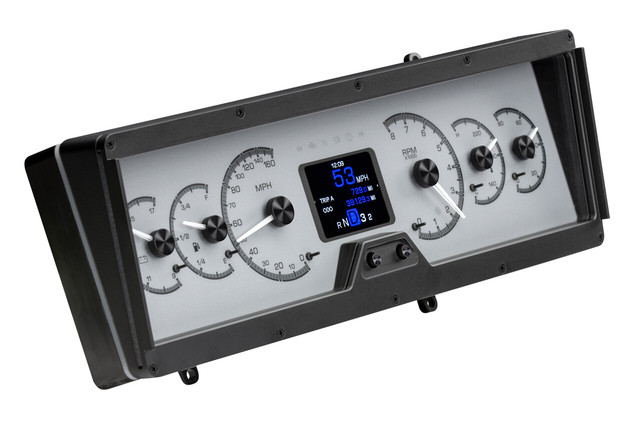

The Dakota Digital HDX-78O-CUT-S is a direct-fit HDX instrument system for 1978-87 Oldsmobile Cutlass/442 models, compatible with both the rectangle and round-gauge style clusters. This silver alloy gauge-face system combines a full-color TFT message center with six analog gauge readings, giving you precise, at-a-glance information along with customizable digital displays. The system requires use of the stock cluster and bezel, or an OEM-style reproduction bezel.

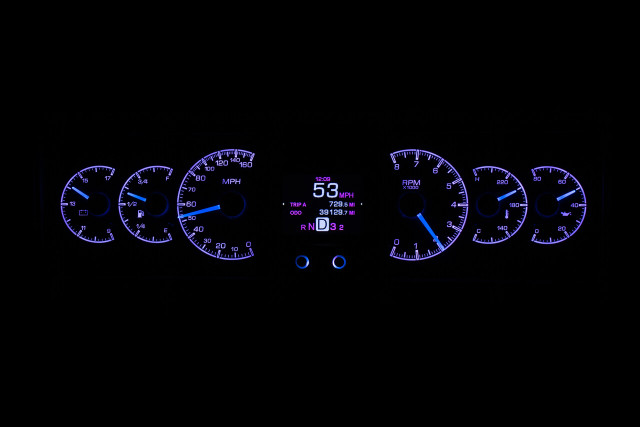

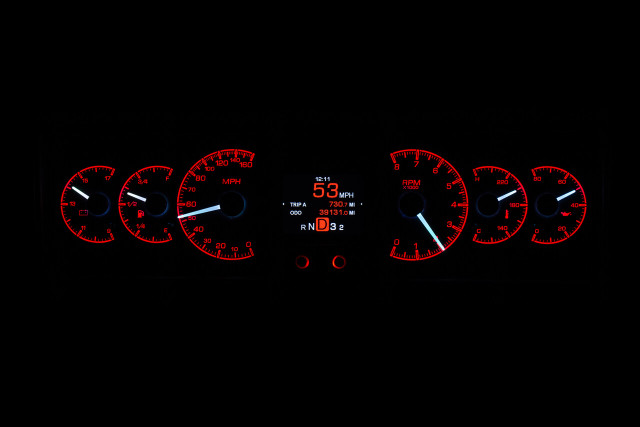

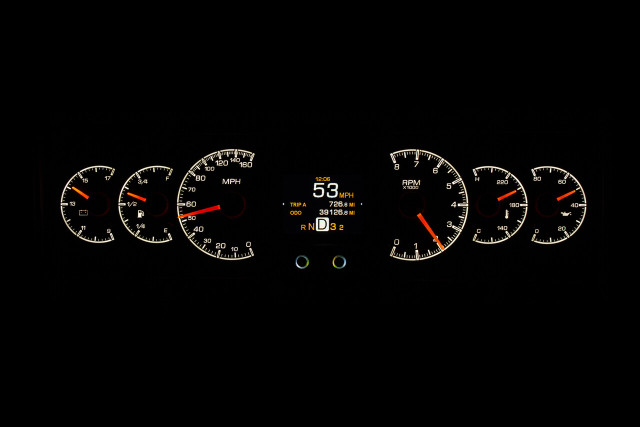

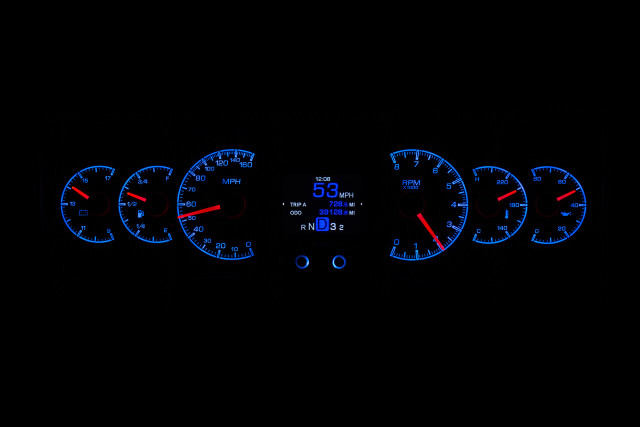

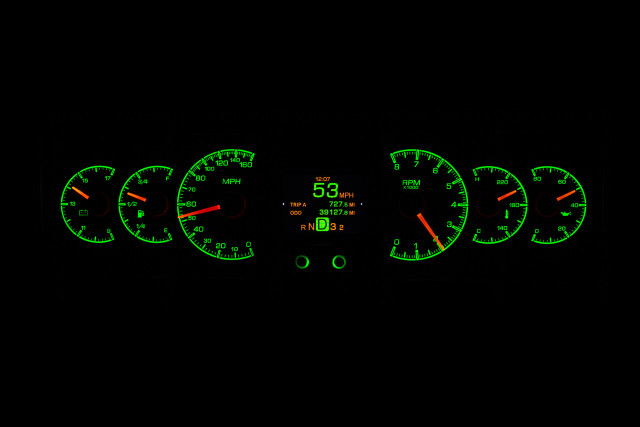

Independent illumination colors can be selected for the gauge readings, needles, and message center, allowing you to tailor the look to your taste. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
Installation is simplified with a central control box that sources signals from the vehicle harness and uses supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Direct fit for 1978-87 Cutlass/442 with rectangle or round-gauge style cluster
- Silver alloy gauge-face styling
- Full color TFT message center with customizable data displays
- Six analog gauge readings: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime brightness settings
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge
- Onboard capacitive-touch pushbutton controls plus Bluetooth app configuration for Apple and Android devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-78O-CUT-S
- Gauge Face Color: Silver Alloy
- Speedometer: 0-160 MPH (split scale providing 120 MPH resolution)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary dimmer control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
