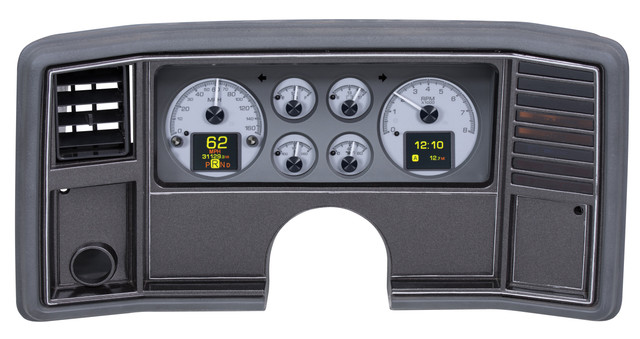

The Dakota Digital HDX-78C-MC-S is a direct bolt-in instrument system for 1978-87 Chevy Monte Carlo, Malibu, and El Camino models equipped with the original six-round gauge cluster. This system is not designed for the sweep-style cluster. It installs into your stock housing, using your original blackout plate and front bezel for a clean, painless upgrade, and features Silver Alloy gauge-face styling.
The HDX system delivers six analog gauge readings, stock-location turn signal indicators, and a pair of TFT message centers. Users can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings controlled via built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units to their respective terminals.
Key Features
- Six analog gauges: Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, and Voltmeter
- Dual TFT digital message centers with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, and wait-to-start, plus two auxiliary user-programmable indicators

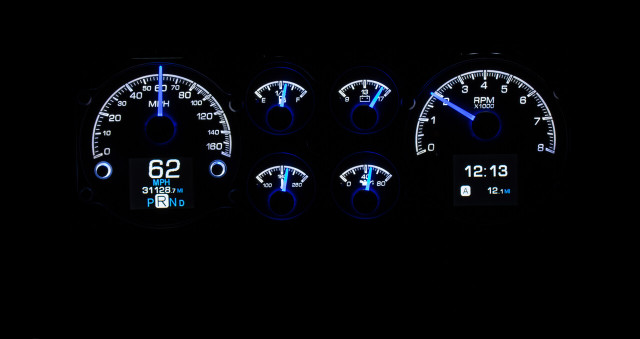

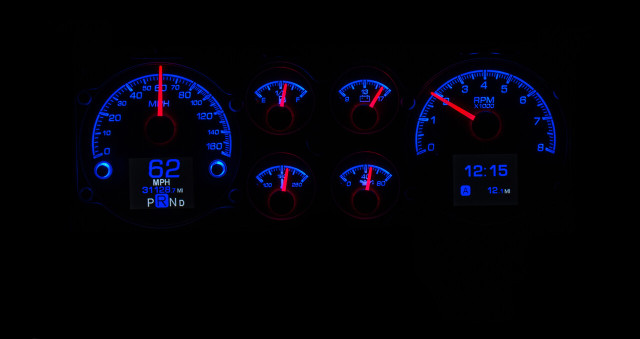

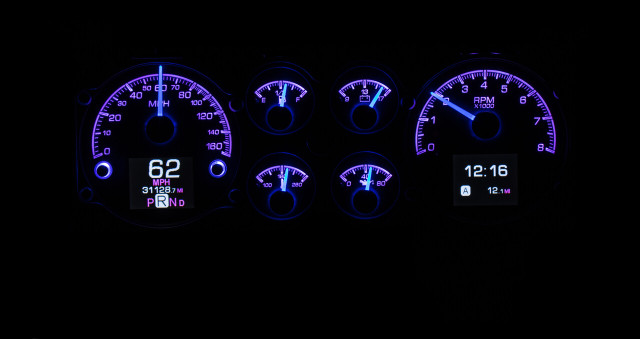

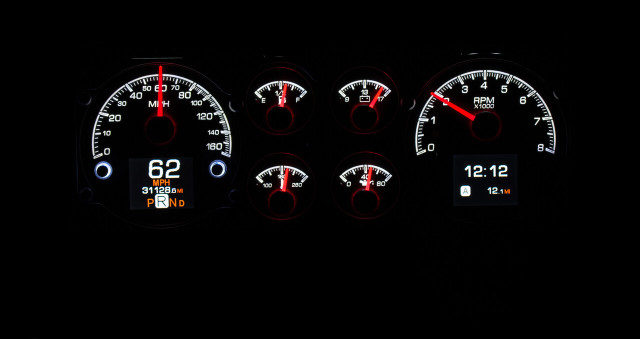

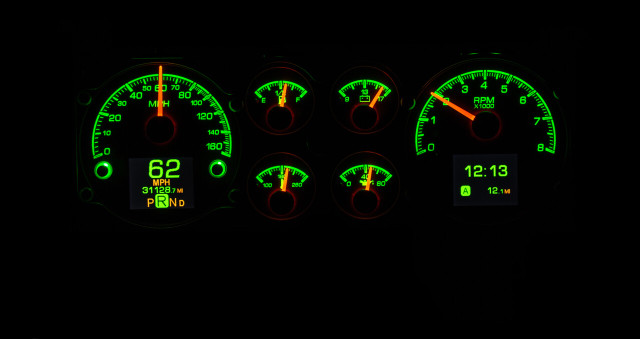

- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Onboard, LED-lit capacitive touch pushbuttons for setup and driving mode functions, plus full Bluetooth app configuration and real-time gauge readouts
- Uses OEM or reproduction style bezel
Specifications
- Part Number: HDX-78C-MC-S
- Gauge Face Color: Silver Alloy
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocation when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses your OEM or reproduction style bezel
- Will not fit rectangular sweep-style speedometer cluster
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for gear position indication
