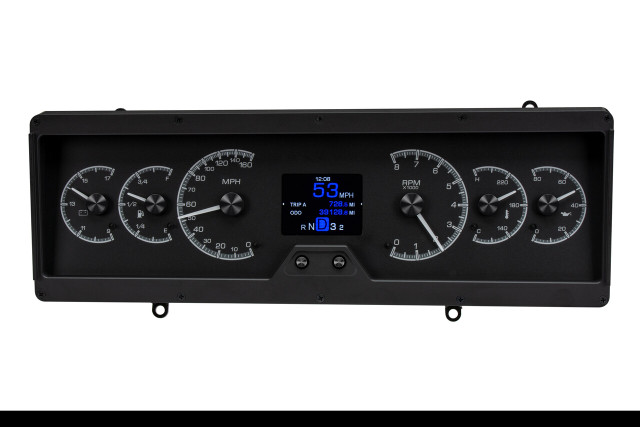

The Dakota Digital HDX-78O-CUT-K is a direct-fit instrument system designed for 1978-87 Oldsmobile Cutlass/442 models, compatible with either the rectangle or round-gauge style cluster. This HDX system pairs a full-color TFT message center with six analog gauge readings, giving drivers both detailed data and at-a-glance information in a single package. It is finished with a black alloy gauge face.
Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied, solid state sending units at their respective terminals. The system requires use of the stock cluster and an OEM or reproduction style bezel; the bezel itself is not included.
Owners can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
Key Features
- Black alloy gauge face styling
- Full color TFT message center with customizable data displays
- Six analog gauges: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Over 30 user-selectable color options for needles, sweep, and digital TFT display
- 12 factory preset color themes or fully customizable color zones
- Full RGB LED backlighting with distinct daytime/nighttime themes
- Onboard LED-lit capacitive touch pushbuttons for setup and driving mode functions
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time gauge readouts
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
Specifications
- Part Number: HDX-78O-CUT-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
