The Dakota Digital HDX-78C-MC-K is a direct bolt-in HDX instrument system designed for 1978-87 Chevy Monte Carlo, Malibu, and El Camino models equipped with the six-round gauge cluster. This system is not compatible with the rectangular sweep-style speedometer cluster. Featuring Black Alloy face styling, the HDX system uses your stock housing, blackout plate, and front bezel for a clean, factory-style appearance.
This system delivers six analog gauge readings along with stock-location turn signals and a pair of TFT message centers. Each gauge features user-selectable illumination colors for needles, sweep, and digital displays, with over 30 color options and 12 factory preset themes available. Needle hubs are black nickel plated spun-aluminum to match the HDX capacitive-touch control buttons.
Calibration and personal settings are controlled via built-in capacitive-touch buttons on the gauge face or through the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units directly to their respective terminals.
Key Features
- Six analog gauges: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Black Alloy gauge face styling with black nickel plated spun-aluminum needle hubs
- Dual TFT digital message centers with standard and performance display modes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)

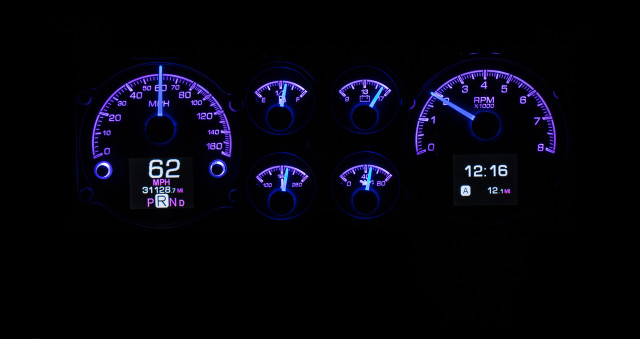

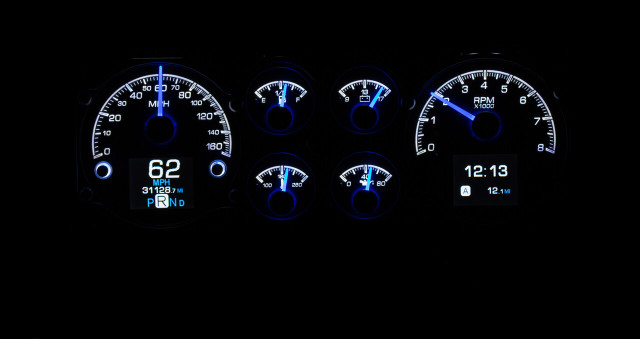

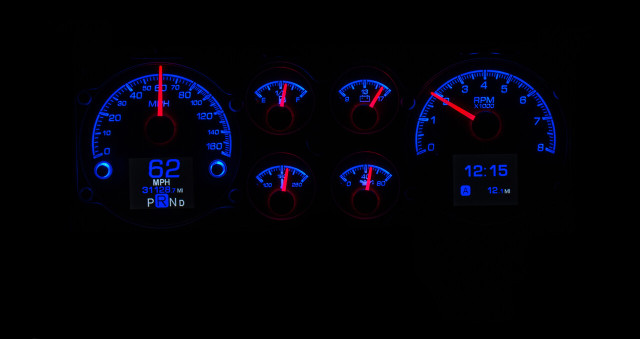

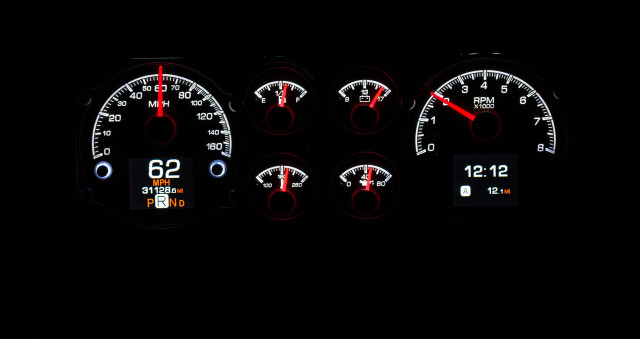

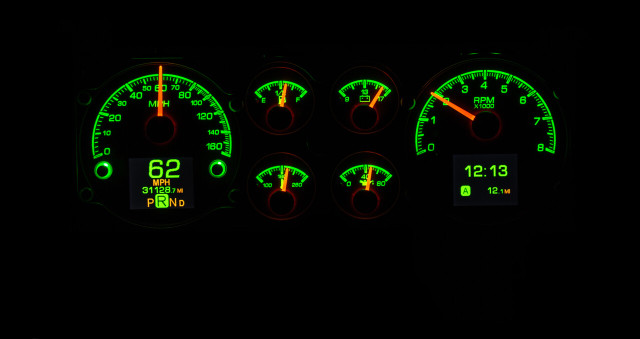

- Over 30 user-selectable color options for needles, sweep, and TFT displays, with 12 factory preset color themes
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Capacitive-touch pushbutton controls on the gauge face plus Bluetooth app configuration for Apple and Android devices
- Vehicle-harness sourced signals with included solid-state sending units for simplified installation
Specifications
- Part Number: HDX-78C-MC-K
- Face Color: Black Alloy
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses your OEM or reproduction style bezel
- Will not fit rectangular sweep-style speedometer cluster
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as desired
