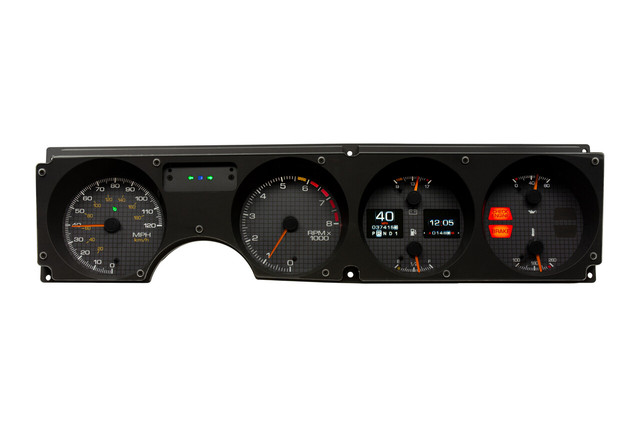

The RTX-82P-FIR-X is a direct-fit RTX Instrument System from Dakota Digital, designed to bolt into any 1982-92 Pontiac Firebird with a non-digital dash. Styled after the sporty 1986-92 Firebird gauge theme, this system replicates the factory layout, face styling, and indicator placement so closely that a casual glance may mistake it for original equipment-until the LED backlighting comes alive in the color scheme of your choice.

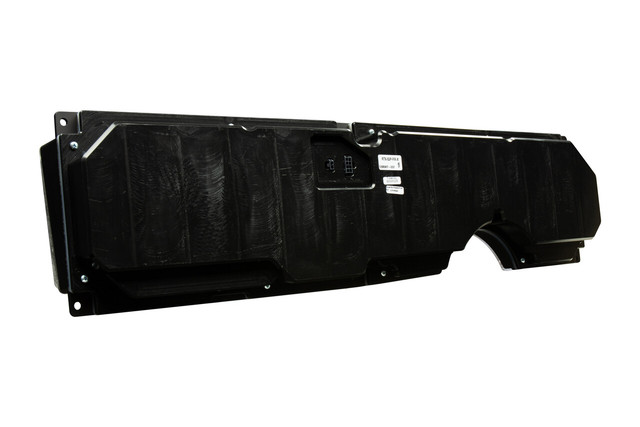

Each RTX system starts with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of information, while a central control box simplifies installation and setup. The system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features
- Direct-fit replacement for 1982-92 Pontiac Firebird non-digital dash applications, styled after the 1986-92 look
- CNC-machined gauge housings with in-house designed electronics
- High-definition TFT digital message center with configurable displays
- Full LED/RGB backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes plus fully customizable color zones
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton rocker switch control for setup, calibration, and menu navigation
- Free mobile app (Android and Apple) for complete system configuration and real-time diagnostic readouts
- Central control box for simplified installation and setup
- Will not replace OE digital dash versions
Specifications
- Part Number: RTX-82P-FIR-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/on & engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator on each analog gauge sweep (except speedometer)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance; part #130011 available separately for relocation when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread sizes
Kit Includes
- RTX instrument cluster with digital message center and control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable-driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes

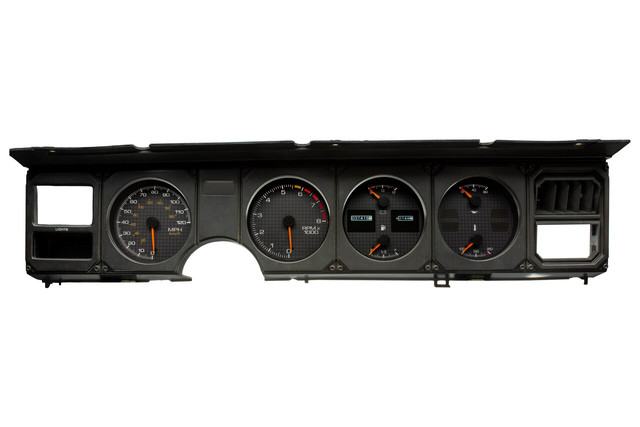

- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Will not replace OE digital dash versions
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- GPS-50-2 available to eliminate the need for speedometer calibration
