Description

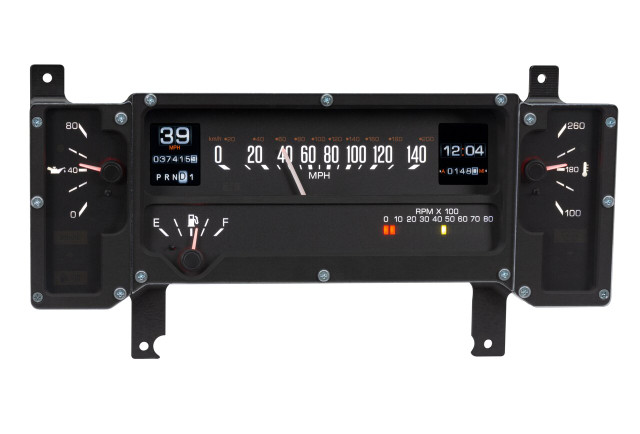

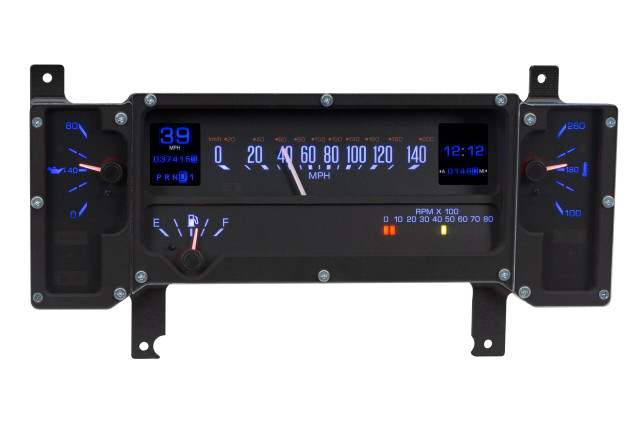

The RTX-84B-REG-X RTX Instrument System brings a fully-functional, stock-looking gauge cluster to 1984-87 Buick Regal applications. A large sweeping horizontal speedometer echoes the original Buick design, while a bar-graph tachometer matches the factory layout. Hidden analog Oil Pressure and Water Temperature gauges reside on the perimeter, with a pair of programmable TFT digital message centers positioned between them and the speedometer. A digital voltmeter rounds out this 6-gauge package, blending OEM styling with modern technology.
As part of Dakota Digital's RTX series, this system retains an OEM design in layout, face styling and indicators while adding late-model features. CNC machined housings house electronics designed and built in-house, and the high-definition TFT message centers can be configured to display a wide range of information. A central control box simplifies installation and setup.
Key Features
- Analog speedometer with bar-graph tachometer, hidden analog Oil Pressure and Water Temperature gauges
- Dual programmable TFT digital message centers and digital voltmeter
- Full LED/RGB backlighting with over 30 user-selectable color options for needle, sweep and TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Independently adjustable daytime and nighttime brightness, controlled through the RTX setup menu or optional DIM-1 rotary control
- Standard displays include odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait-to-start and gear position (gear position requires optional GSS-3000 sensor)
- Each analog gauge sweep includes a red LED indicator for quick notice of a warning condition (except speedometer)
- Two auxiliary input indicators with user-programmable labels
Specifications
- Part Number: RTX-84B-REG-X
- Speedometer Range: 0-140 MPH
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Tachometer Range: 0-8,000 RPM
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; relocation part #130011 sold separately if additional clearance is needed)
- Bushing kit including 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; shown for visual/presentation purposes only
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed for your application
- Gear Position indicator requires optional GSS-3000 sensor
- On-the-fly rotary brightness control available with optional DIM-1 accessory
- Speedometer calibration and fuel level setup are completed via onboard capacitive touch pushbuttons or the Bluetooth app, with a short test drive required in most cases unless the optional GPS-50-2 is used
