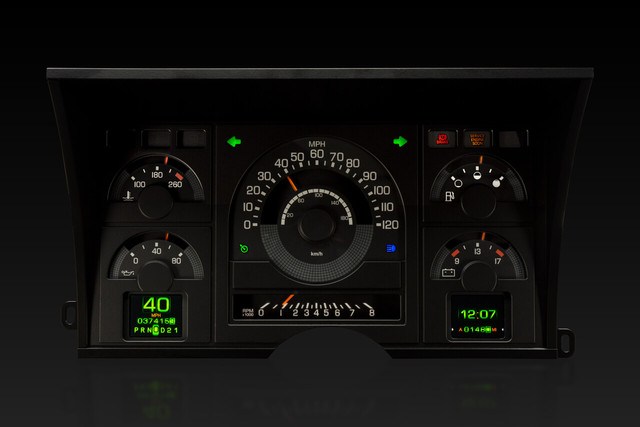

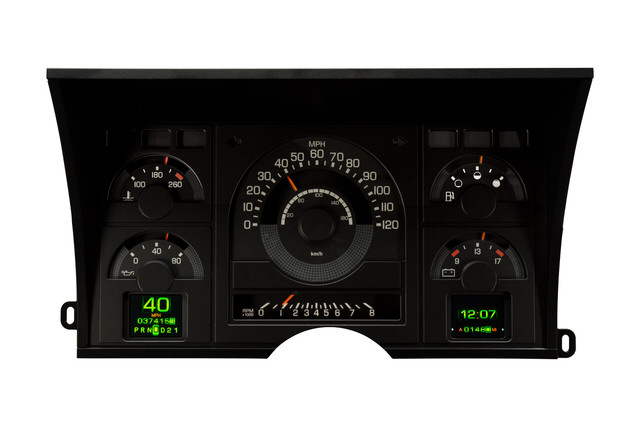

The Dakota Digital RTX-88C-PU-X Instrument System is a direct-fit replacement gauge cluster designed for 1988-91 Chevy/GMC Truck, Suburban, Tahoe, and Yukon models. Built to retain the stock appearance of the original dash, this system incorporates OEM-style design elements in its layout, face styling, and indicators, while adding modern electronics and fully configurable LED backlighting beneath the surface.
Each RTX gauge cluster starts with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, and the system uses a central control box to simplify installation and setup. Note that the bezel is not included with this system; it is designed to use an OEM or reproduction style bezel.
Key Features
- Analog gauges including speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- High-definition TFT digital message center with standard displays and performance meters
- Standard displays include odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters include 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, and wait-to-start (as equipped)
- Two auxiliary input indicators with user-programmable labels
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton rocker switch control for setup and driving-mode functions
- Configurable via free mobile app for Android and Apple devices with real-time gauge readouts
Specifications
- Part Number: RTX-88C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control (sold separately)
- Speedometer calibration is not required when used with optional GPS-50-2 (sold separately)
