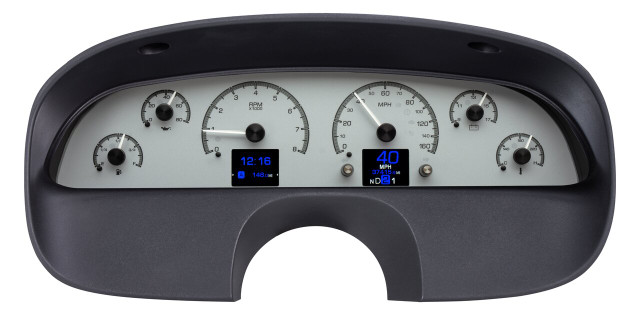

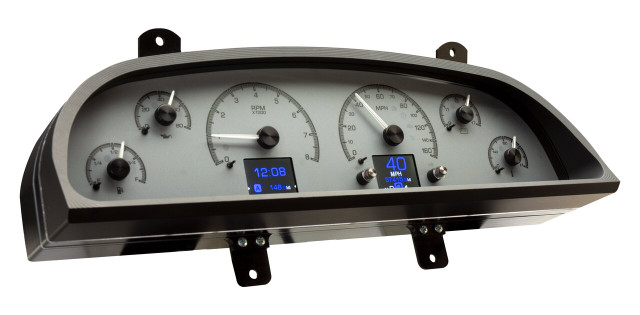

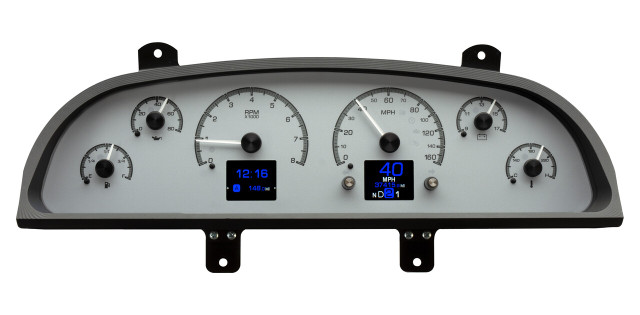

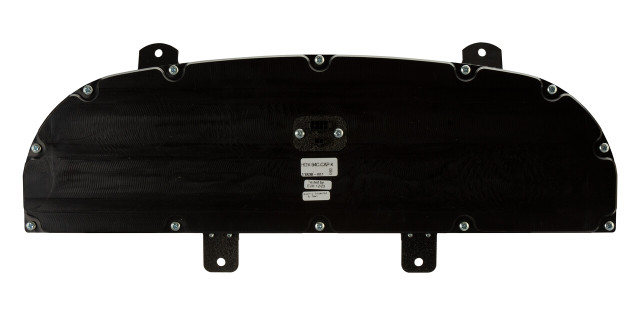

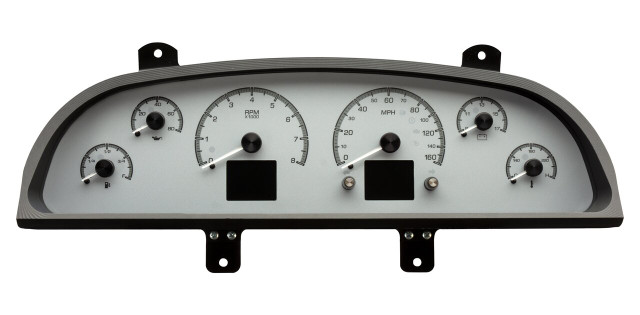

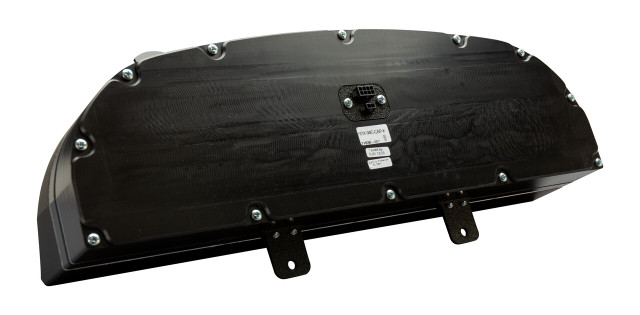

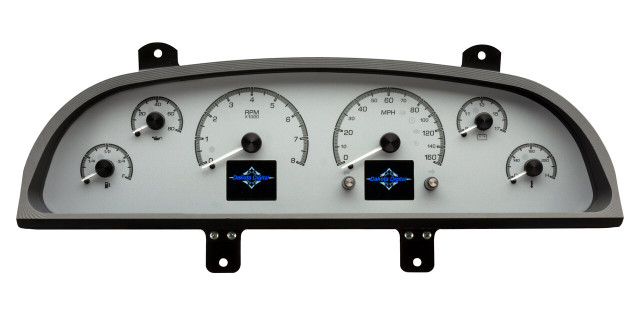

The Dakota Digital HDX-94C-CAP-S is a direct-fit HDX gauge system engineered for 1994-96 Chevy Caprice and Impala SS models, from retired police cars to the sinister Impala SS and every trim level in between. This system drops right into the stock dash and delivers a wealth of information not available with the factory instrumentation, featuring a silver alloy gauge-face styling.
Each HDX system allows the user to independently select illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons, and all HDX systems feature dead-faced indicators along with a red, settable warning light for each gauge.
A central control box simplifies installation, using vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for independently changing needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting for sharp contrast day and night with unique daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- LED-lit onboard capacitive touch pushbuttons for quick, consistent menu and function access
- Bluetooth app control and real-time gauge readouts for Android and Apple devices

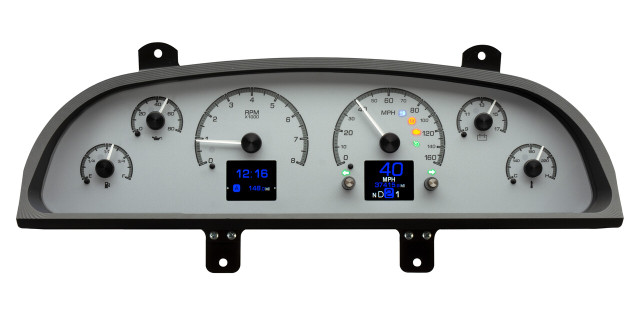

- Dead-faced indicators with a red LED warning indicator built into each analog gauge sweep (except speedometer)
- Central control box simplifies wiring with vehicle-harness sourced signals
Specifications
- Part Number: HDX-94C-CAP-S
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer with a top end range of 160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary dimmer control (sold separately)
